Shift Lock Control System: Wiring Diagram

Fig 1: Shift Lock Control System Wiring Diagram (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

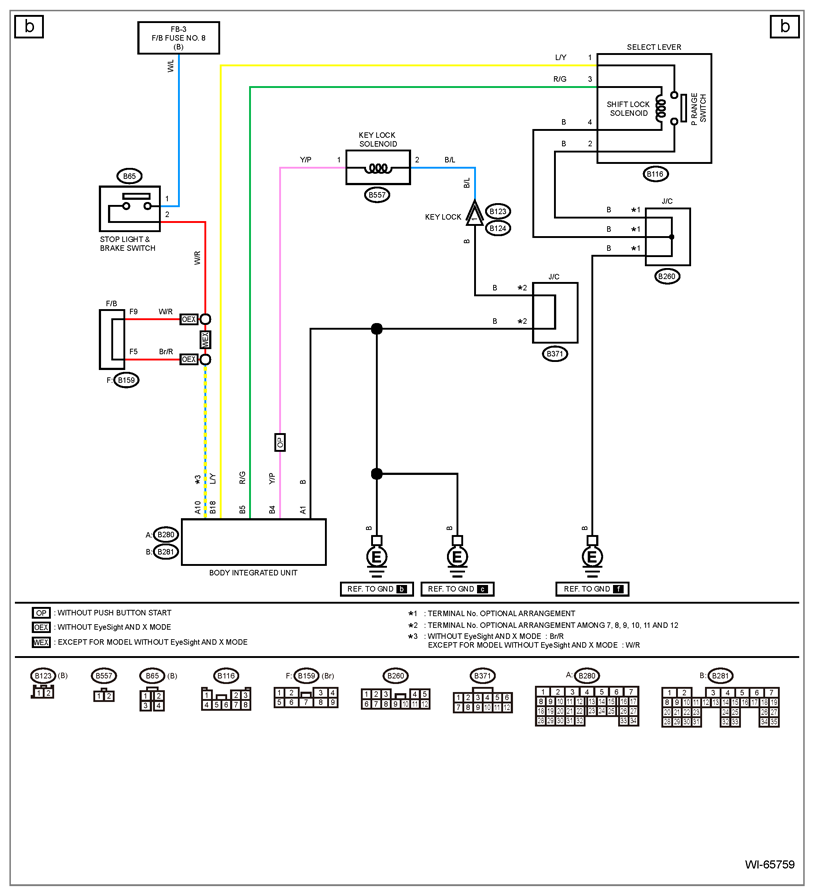

Fig 2: Shift Lock Control System Wiring Diagram (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
