With Push Button Start

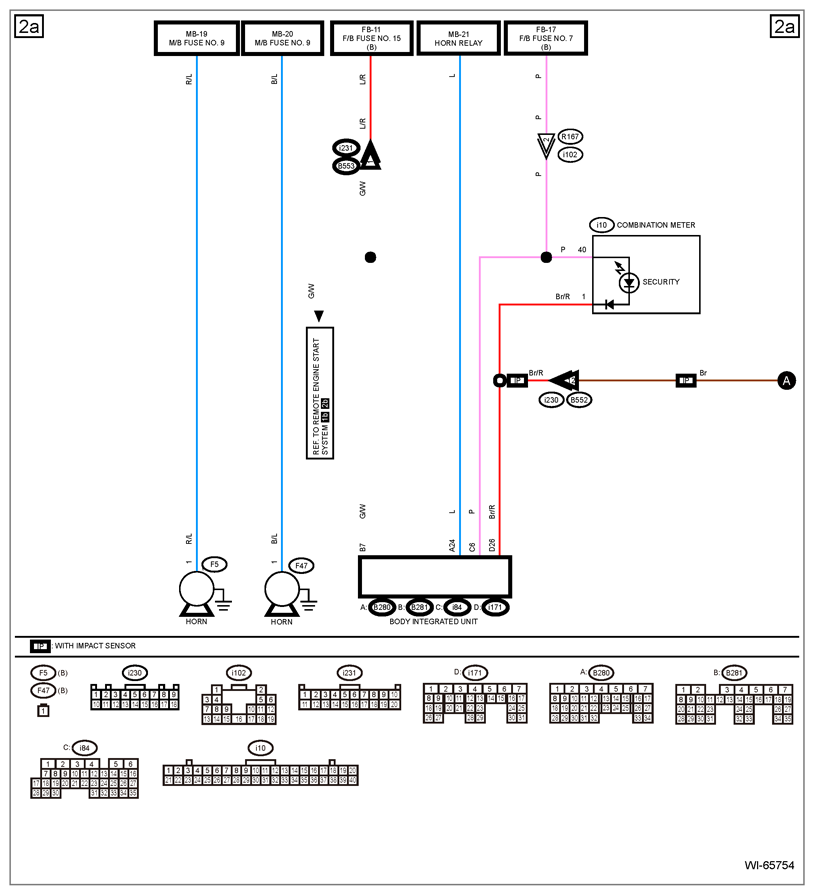

Fig 1: With Push Button Start Security System Wiring Diagram (1 Of 4)
G11272534Courtesy of SUBARU OF AMERICA, INC.

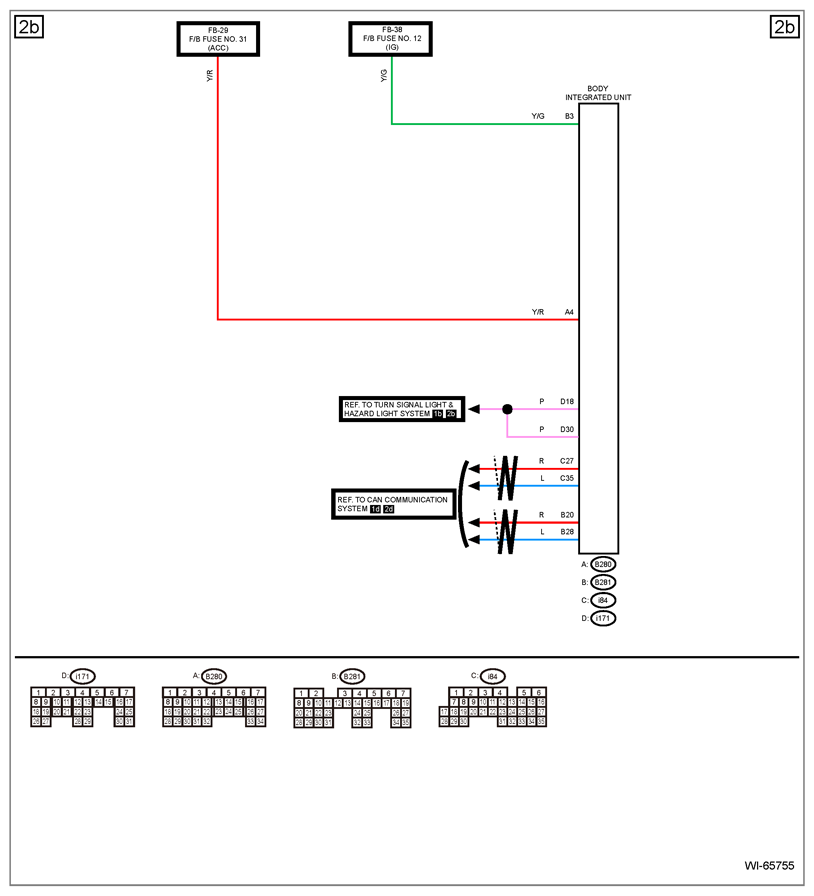

Fig 2: With Push Button Start Security System Wiring Diagram (2 Of 4)
G11272535Courtesy of SUBARU OF AMERICA, INC.

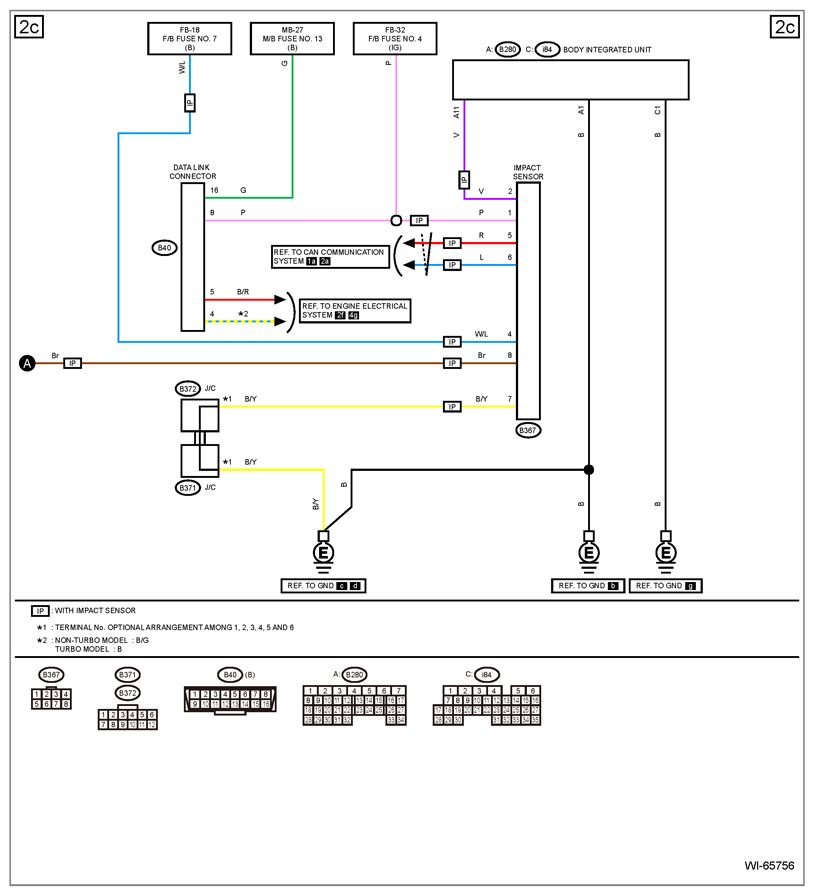

Fig 3: With Push Button Start Security System Wiring Diagram (3 Of 4)
G11272536Courtesy of SUBARU OF AMERICA, INC.

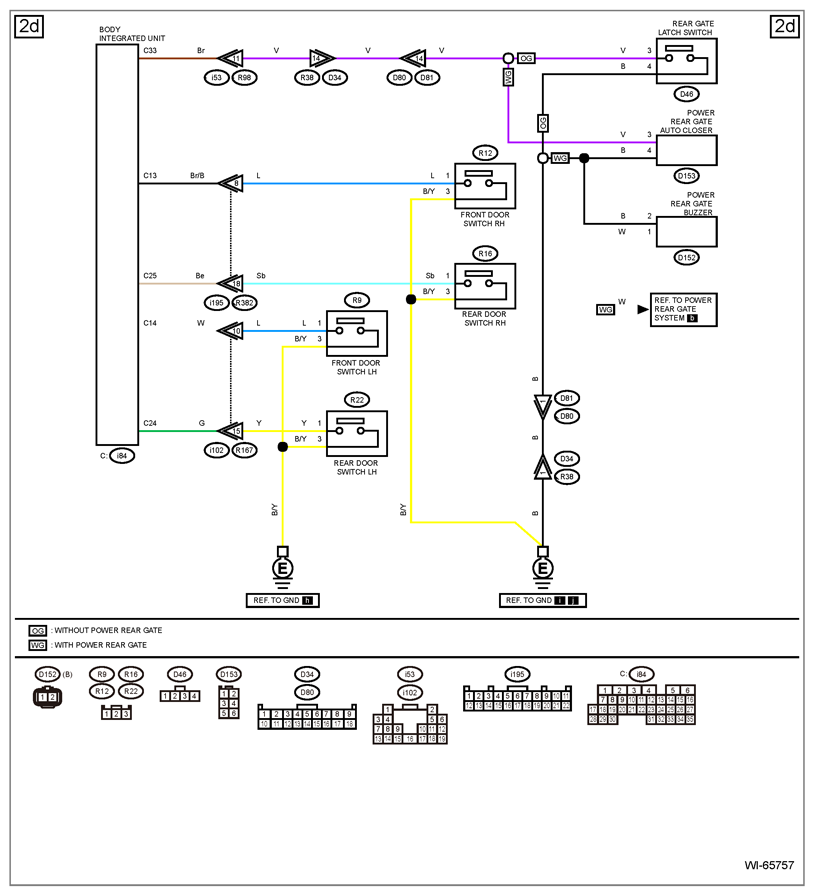

Fig 4: With Push Button Start Security System Wiring Diagram (4 Of 4)
G11272537Courtesy of SUBARU OF AMERICA, INC.
