Remote Control Back Rest System: Wiring Diagram

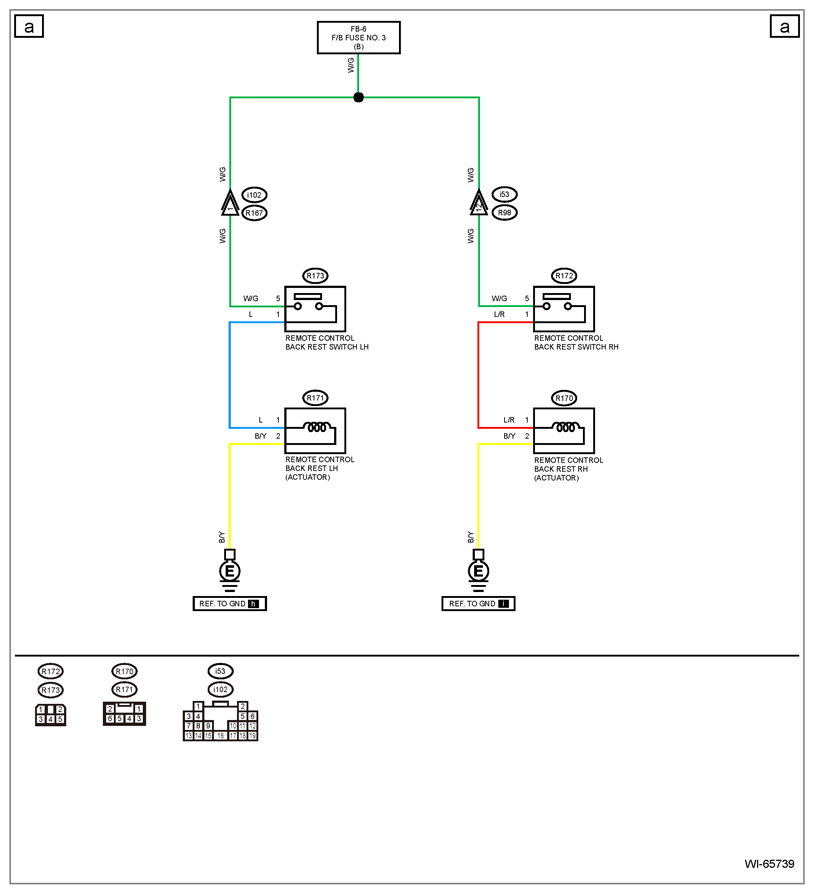

Fig 1: Remote Control Back Rest System Wiring Diagram

G11272515

Courtesy of SUBARU OF AMERICA, INC.
