With Audio Amplifier, With Telematics

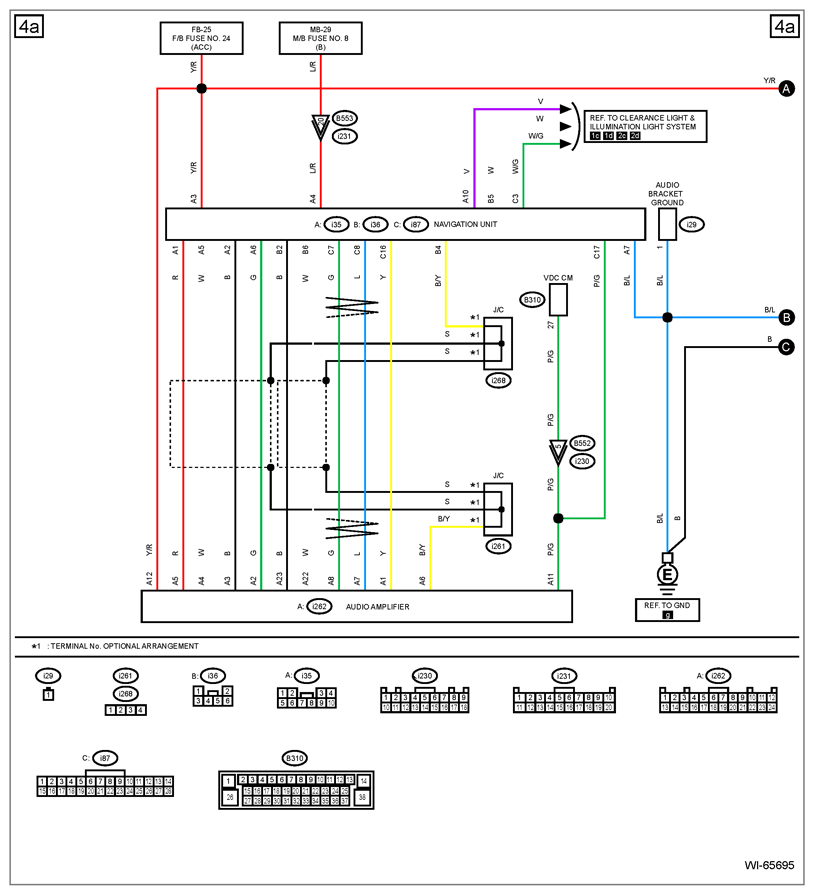

Fig 1: Navigation System Wiring Diagram With Audio Amplifier And Telematics (1 Of 6)
G11272468Courtesy of SUBARU OF AMERICA, INC.

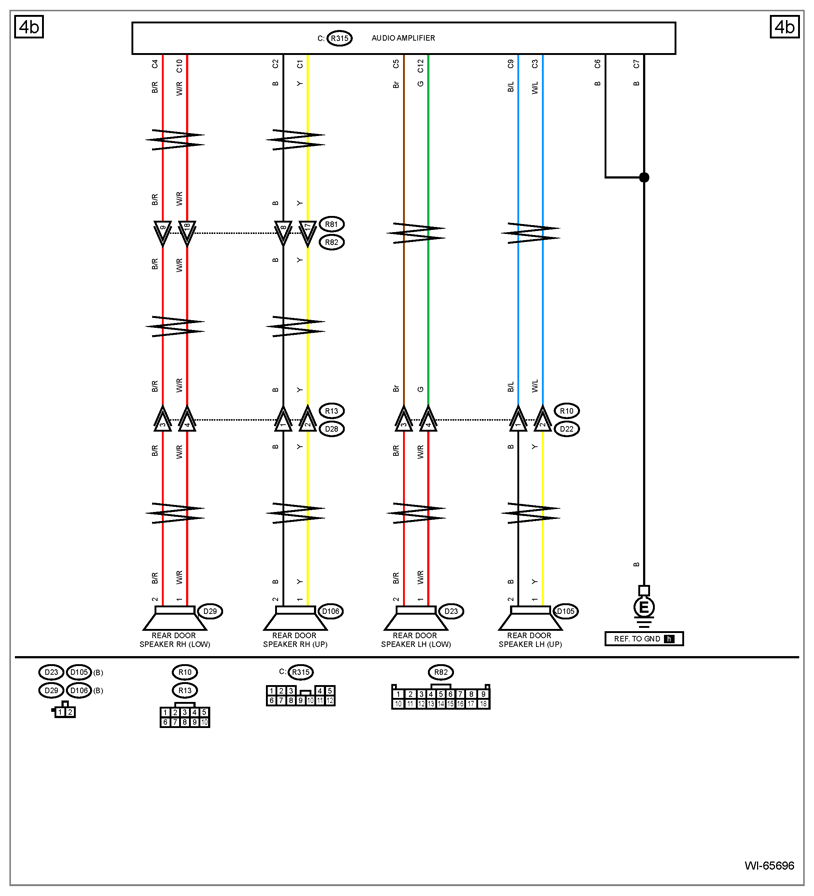

Fig 2: Navigation System Wiring Diagram With Audio Amplifier And Telematics (2 Of 6)
G11272469Courtesy of SUBARU OF AMERICA, INC.

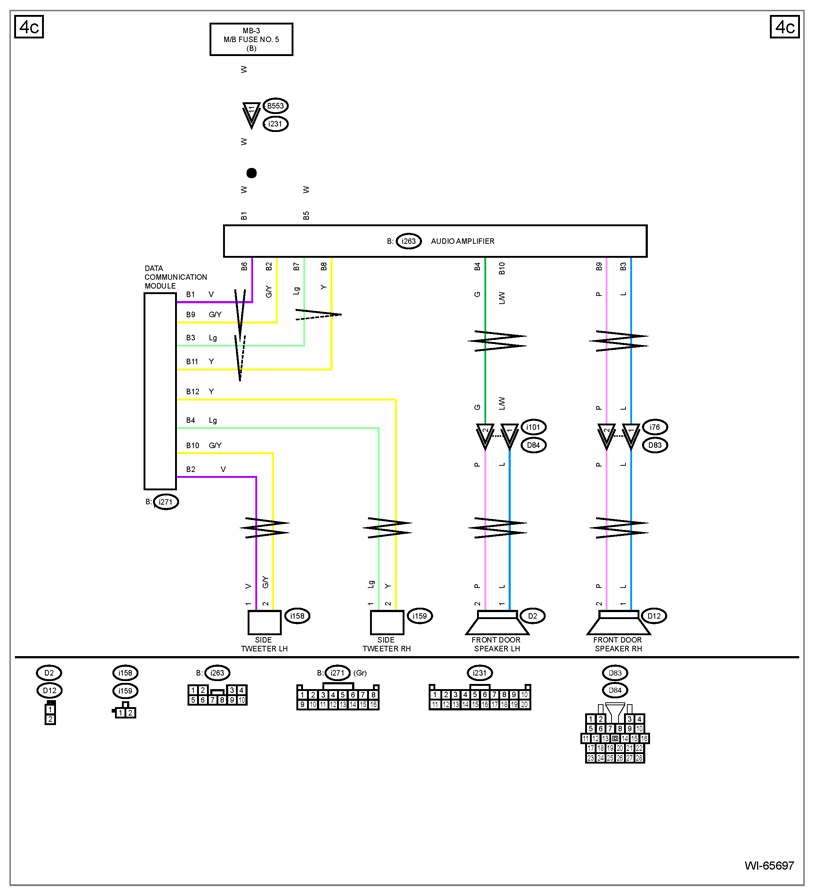

Fig 3: Navigation System Wiring Diagram With Audio Amplifier And Telematics (3 Of 6)
G11272470Courtesy of SUBARU OF AMERICA, INC.

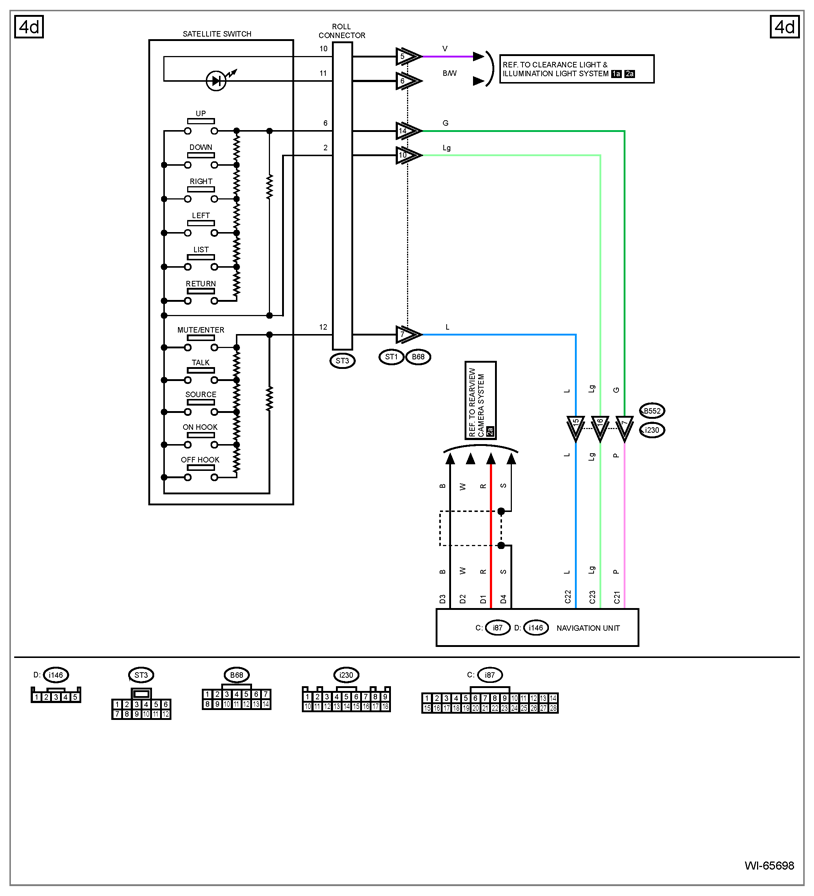

Fig 4: Navigation System Wiring Diagram With Audio Amplifier And Telematics (4 Of 6)
G11272471Courtesy of SUBARU OF AMERICA, INC.

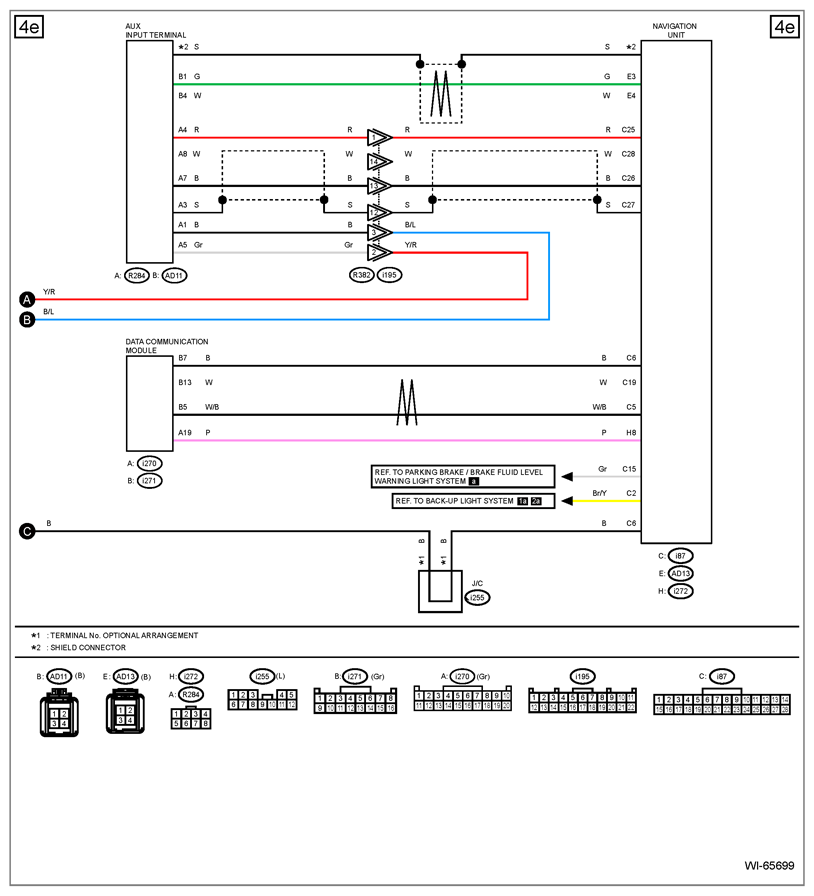

Fig 5: Navigation System Wiring Diagram With Audio Amplifier And Telematics (5 Of 6)
G11272472Courtesy of SUBARU OF AMERICA, INC.

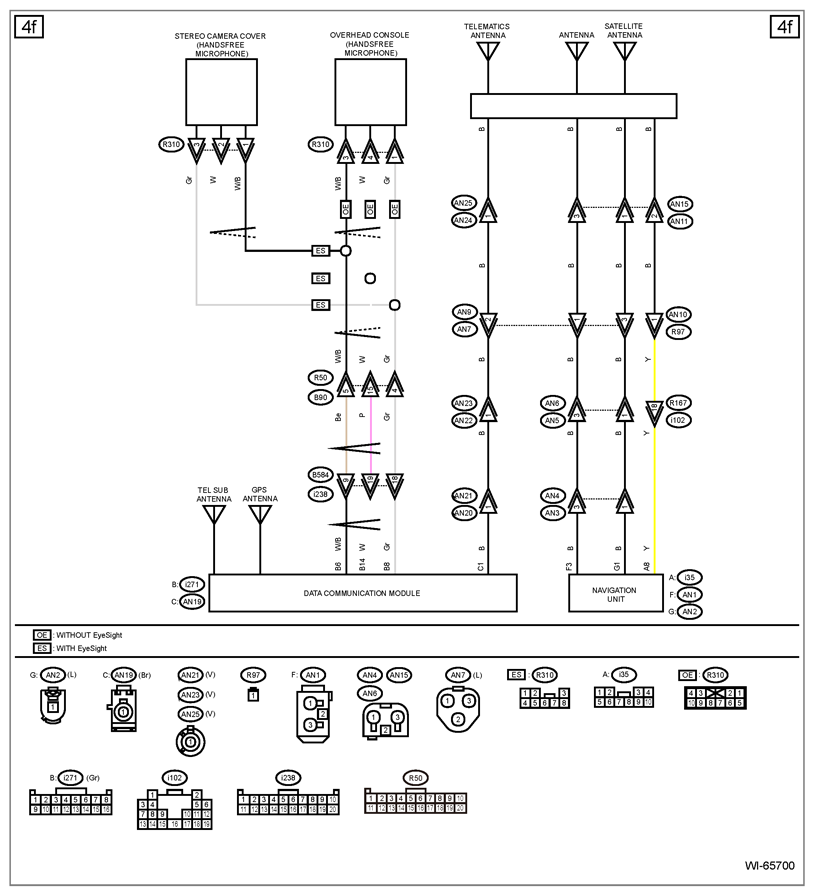

Fig 6: Navigation System Wiring Diagram With Audio Amplifier And Telematics (6 Of 6)
G11272473Courtesy of SUBARU OF AMERICA, INC.
