Seat Belt Warning System: Wiring Diagram

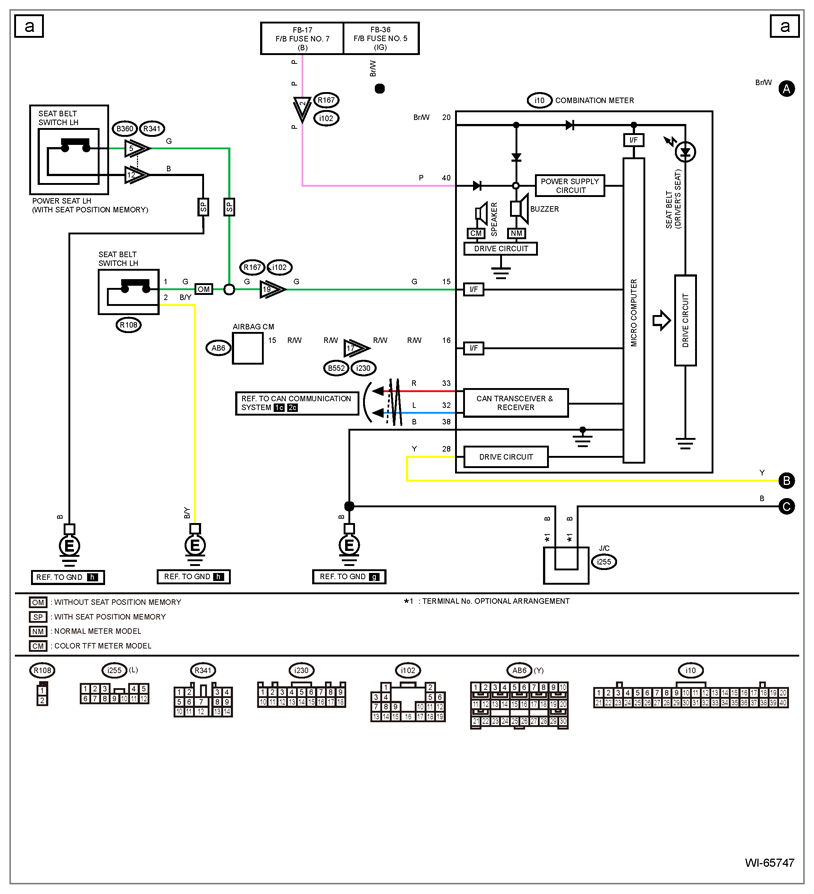

Fig 1: Seat Belt Warning System Wiring Diagram (1 Of 2)
G11272525Courtesy of SUBARU OF AMERICA, INC.

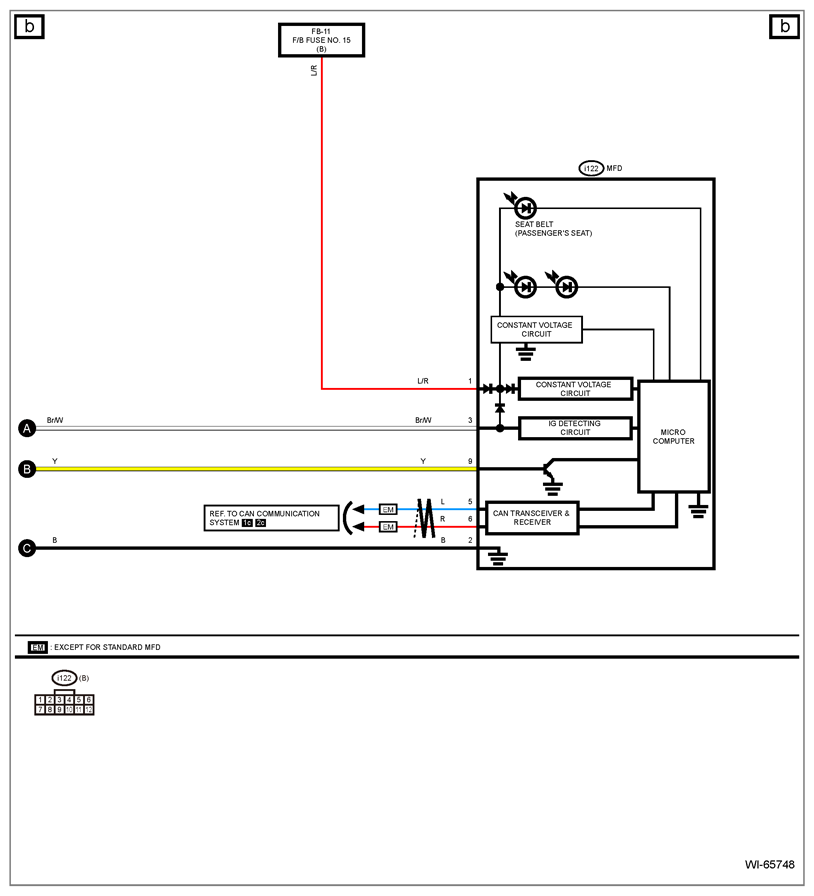

Fig 2: Seat Belt Warning System Wiring Diagram (2 Of 2)
G11272526Courtesy of SUBARU OF AMERICA, INC.
