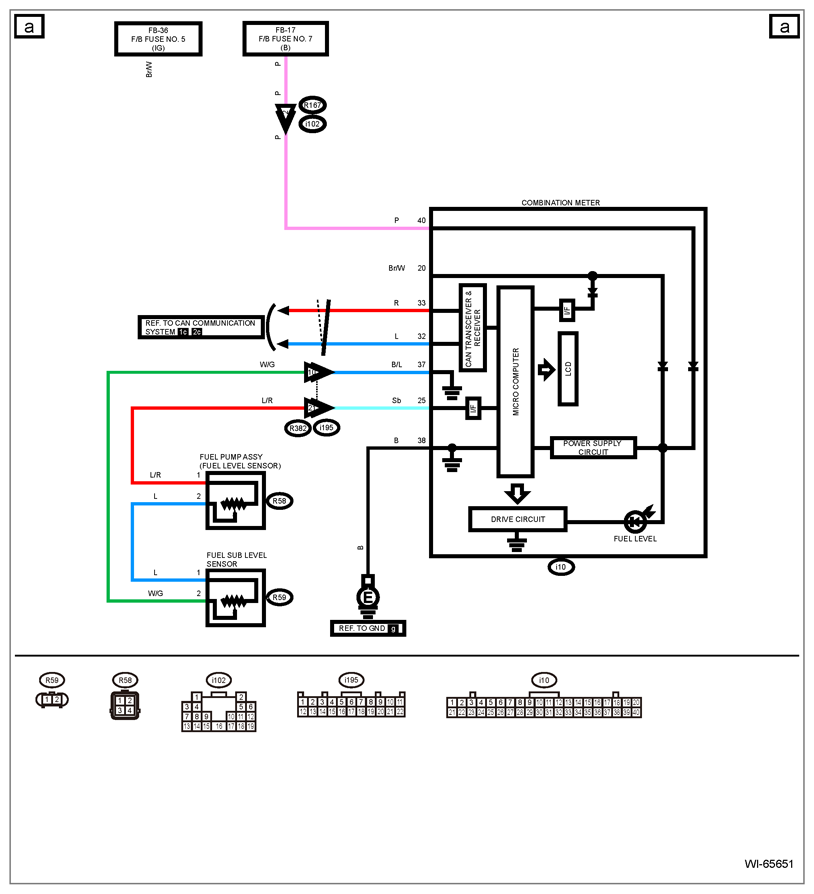

Home >> Subaru >> 2017 >> Forester 2.0XT Touring >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations >> Fuel Gauge System >> Wiring Diagram
