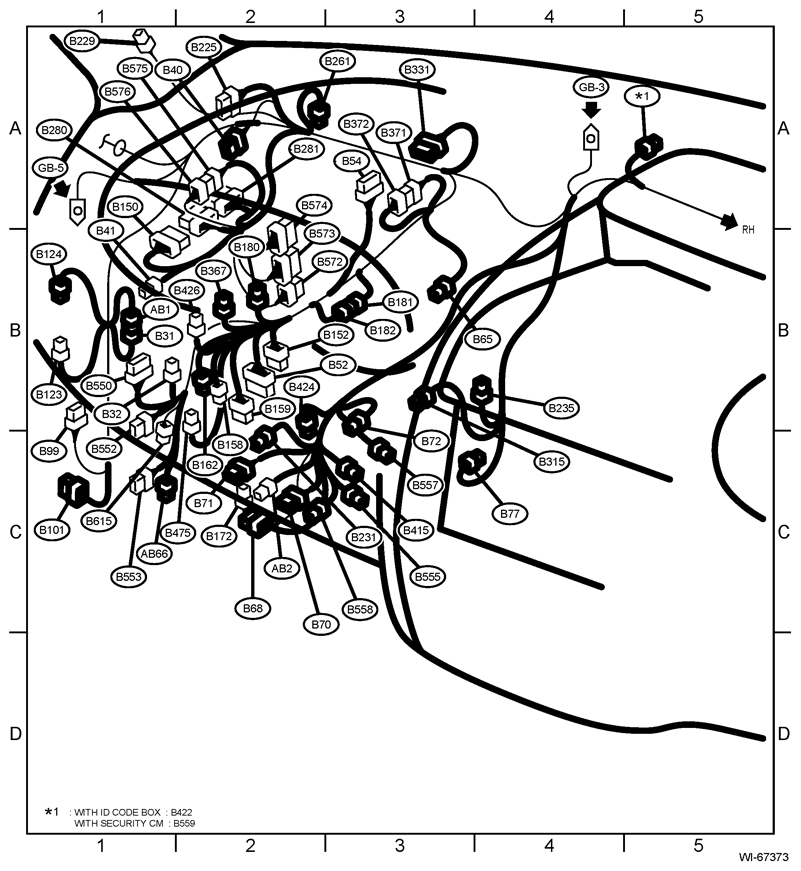

| B31 |
2 |
|
B-1 |
AB1 |
Airbag wiring harness |
| B32 |
8 |
|
B-1 |
|
Turn signal and hazard unit |
| B40 |
16 |
B |
A-2 |
|
Data link connector |
| B41 |
2 |
L |
B-1 |
|
Power window circuit breaker |
| B52 |
24 |
|
B-2 |
|
F/B |
| B54 |
48 |
B |
A-3 |
|
TCM |
| B65 |
4 |
B |
B-3 |
|
Stop light and brake switch |
| B68 |
14 |
|
C-2 |
|
Roll connector |
| B70 |
10 |
|
C-2 |
|
Combination switch |
| B71 |
20 |
|
C-2 |
|
| B72 |
8 |
|
B-3 |
|
Ignition switch (without push button start) |
| B77 |
6 |
|
C-3 |
|
Mode door actuator |
| B99 |
14 |
|
B-1 |
R3 |
Rear wiring harness |
| B101 |
11 |
B |
C-1 |
D11 |
Front door cord LH |
| B123 |
2 |
B |
B-1 |
B124 |
Key lock (without push button start) |
| B124 |
2 |
B |
B-1 |
B123 |
| B150 |
24 |
|
B-1 |
|
Auto headlight beam leveler Control Module |
| B152 |
10 |
Gr |
B-2 |
|
F/B |
| B158 |
8 |
|
B-2 |
|
| B159 |
9 |
Br |
B-2 |
|
| B162 |
2 |
|
B-2 |
|
| B172 |
4 |
|
C-2 |
|
Steering heater switch |
| B180 |
4 |
|
B-2 |
|
Remote engine start Control Module (without push button start) |
| 8 |
|
B-2 |
|
Remote engine start Control Module (with push button start) |
| B181 |
2 |
|
B-3 |
B182 |
Bulkhead wiring harness |
| B182 |
2 |
|
B-3 |
B181 |
| B225 |
44 |
|
A-2 |
|
Relay holder |
| B229 |
16 |
|
A-1 |
AD1 |
Telematics button adapter cord |
| B231 |
5 |
|
C-2 |
|
Steering angle sensor |
| B235 |
6 |
|
B-4 |
|
Air mix door actuator LH |
| B261 |
4 |
|
A-2 |
|
J/C |
| B280 |
34 |
|
A-2 |
|
Body integrated unit |
| B281 |
35 |
|
A-2 |
|
| B315 |
6 |
B |
B-3 |
|
Accelerator pedal position sensor |
| B331 |
22 |
|
A-3 |
|
J/C |
| B367 |
8 |
|
B-2 |
|
Impact sensor |
| B371 |
12 |
|
A-3 |
|
J/C |
| B372 |
12 |
|
A-3 |
|
| B415 |
7 |
B |
C-3 |
|
Immobilizer antenna (without push button start) |
| B422 |
5 |
|
A-5 |
|
ID code box |
| B424 |
7 |
B |
B-2 |
|
Steering lock Control Module (with push button start) |
| B426 |
4 |
B |
B-2 |
|
Accessory relay (push button start) |
| B475 |
4 |
|
B-2 |
|
Wiper relay unit |
| B550 |
26 |
|
B-1 |
|
Fuse holder |
| B552 |
18 |
|
B-1 |
1230 |
Instrument panel wiring harness |
| B553 |
20 |
|
C-1 |
i231 |
| B555 |
2 |
|
C-3 |
|
Key warning switch (without push button start) |
| B557 |
2 |
|
C-3 |
|
Key lock solenoid (without push button start) |
| B558 |
7 |
|
C-3 |
|
Combination switch |
| B559 |
5 |
|
A-5 |
|
Security Control Module |
| B572 |
18 |
|
B-2 |
|
Keyless access Control Module |
| B573 |
28 |
|
B-2 |
|
| B574 |
30 |
|
B-2 |
|
| B575 |
18 |
|
A-2 |
B576 |
Bulkhead wiring harness (with push button start) |
| B576 |
18 |
|
A-2 |
B575 |
| B615 |
2 |
B |
C-1 |
|
Diode |
