Bushing - Trailing Link

  1. Remove the housing assembly - rear axle. Ref. to DRIVE SHAFT SYSTEM>Rear Axle>REMOVAL .
  2. Using the ST and a hydraulic press, push out the bushing.

    Preparation tool:

    ST1: BUSHING REMOVER (20099FG000)

    ST2: INSTALLER & REMOVER (20099PA010)

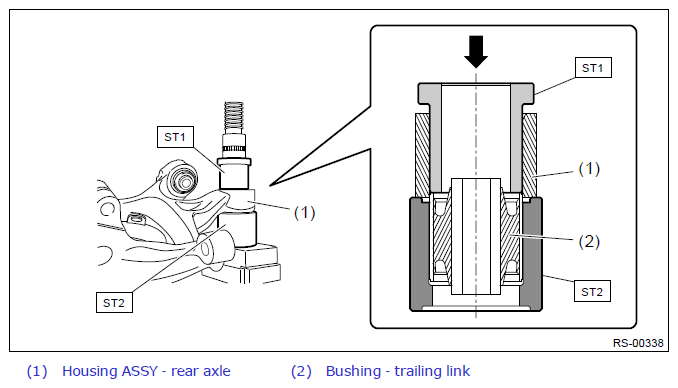

Fig 1: Pushing Out Bushing Using (ST) And Hydraulic Press
G11270189Courtesy of SUBARU OF AMERICA, INC.
