Rear Drive Shaft Assembly

Model Type of drive shaft Axle diameter ø mm (in) Axle length mm (in)
MT, CVT (TR690) EBJ + EDJ 22 (0.87) 384.4 (15.13)
CVT (TR580) BJ + DOJ 22 (0.87) 399.2 (15.72)

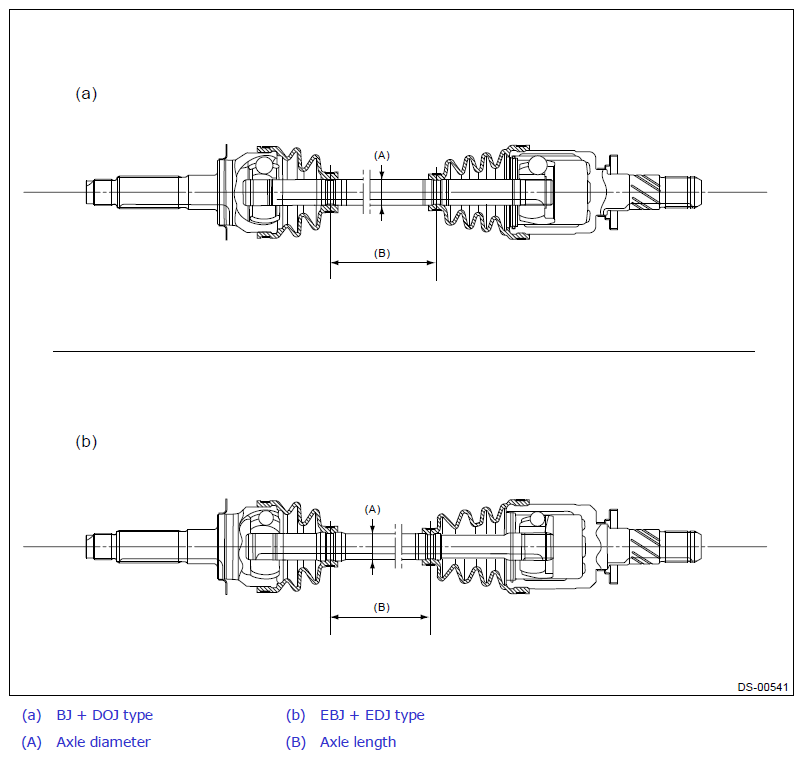

Fig 1: Measuring Rear Drive Shaft Assembly Axle Diameter And Length
G11270122Courtesy of SUBARU OF AMERICA, INC.
