Front Door: Adjustment

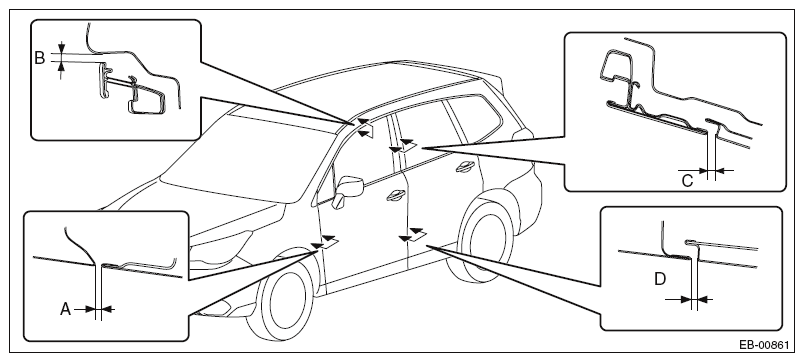

Adjust the clearance around the panel assembly - front door as follows.
| Part | Standard | |
|---|---|---|
| A | Fender COMPL - front to Panel assembly - front door | 4.5±1 mm (0.18±0.04 in) |
| B | Panel side outer to Front door sash | 5.7+1.5, -1 mm (0.22+0.06, -0.04 in) |
| C | Front door sash to Rear door sash | 5.5+1.5, -1 mm (0.22+0.06, -0.04 in) |
| D | Panel assembly - front door to Panel assembly - rear door | 4.5±1 mm (0.18±0.04 in) |
- Adjust the vertical and horizontal positions of the panel assembly - front door.
- Turn over the mud guard - front, loosen the body side bolts of the upper hinge - front door and the lower hinge - front door.
- Adjust the vertical and horizontal clearance of the panel assembly - front door.
- Adjust the surface level gap between the panel assembly - front door and the panel assembly - rear door.CAUTION: Do not use an impact wrench. Welding area on the striker nut plate is easily broken.
- Loosen the screws (A).
- Tap the striker - front door (B) using a plastic hammer to adjust the surface level gap between the rear end of the panel assembly - front door and the front end of the panel assembly - rear door.
