DTC B2A0D Airbag Signal Performance: Wiring diagram

Telematics Ref. to WIRING SYSTEM>Telematics System>WIRING DIAGRAM .

Fig 1: Airbag Signal Performance System Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

CAUTION:

• CommCheck is required after replacing the DCM. Ref. to ENTERTAINMENT>Telematics System>OPERATION>REGISTRATION (COMM CHECK) .
• Before performing diagnosis, refer to "CAUTION" in "General Description". Ref. to AIRBAG SYSTEM>General Description>CAUTION .

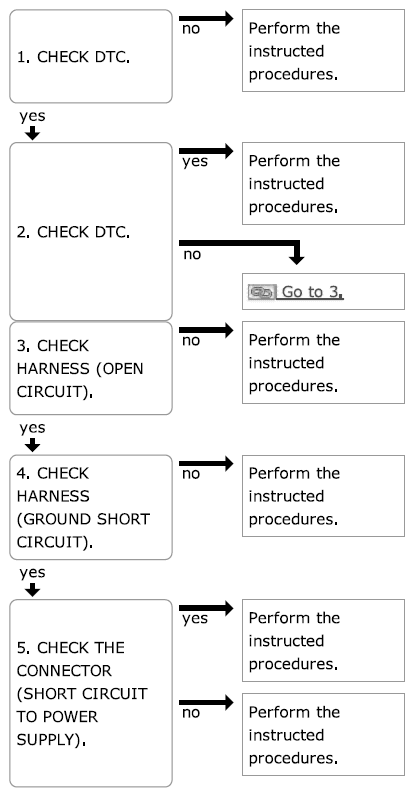

Fig 2: Airbag Signal Performance Diagnostics Flowchart

Courtesy of SUBARU OF AMERICA, INC.
