OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations
>>
Combination Meter System
>>
Wiring Diagram
>>
Model With Normal Meter
Model With Normal Meter
Fig 1: Combination Meter (Normal Meter) System - Wiring Diagram (1 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

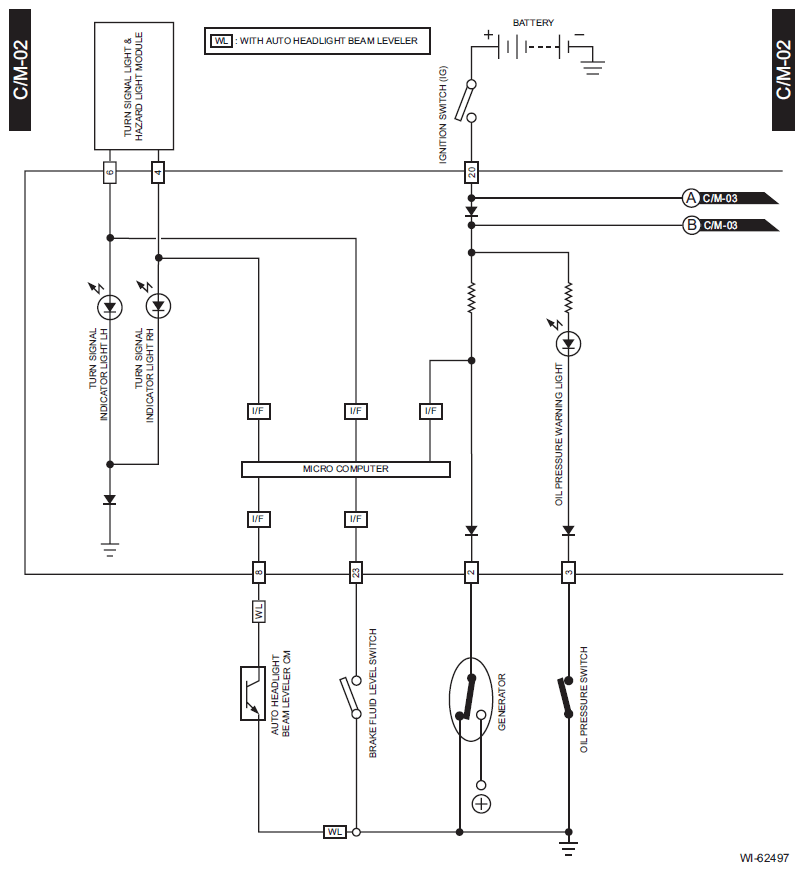

Fig 2: Combination Meter (Normal Meter) System - Wiring Diagram (2 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

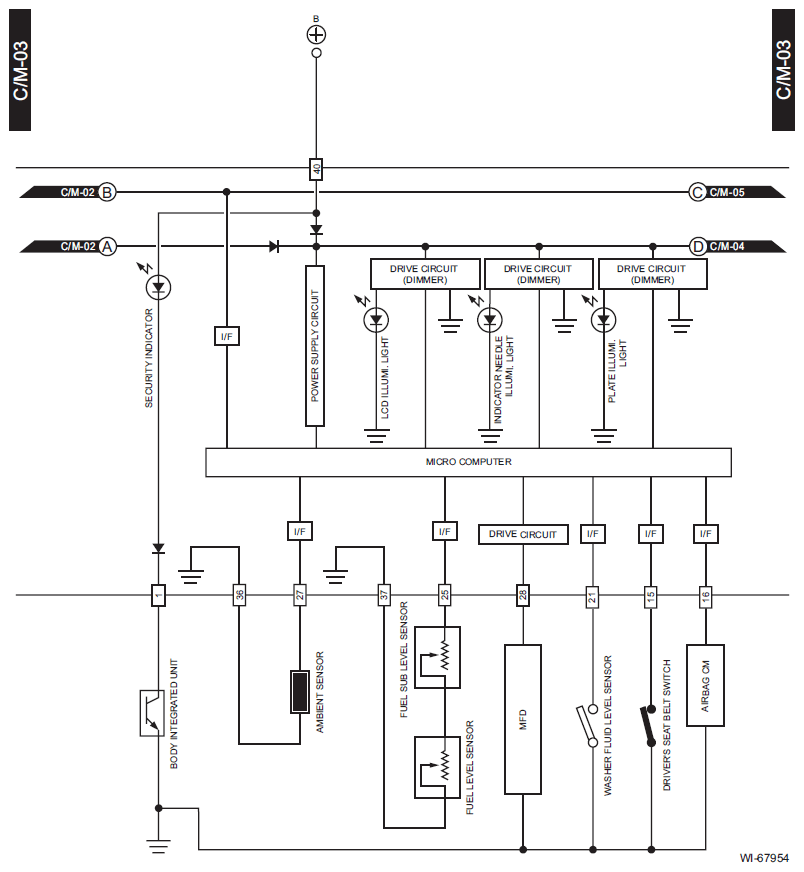

Fig 3: Combination Meter (Normal Meter) System - Wiring Diagram (3 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

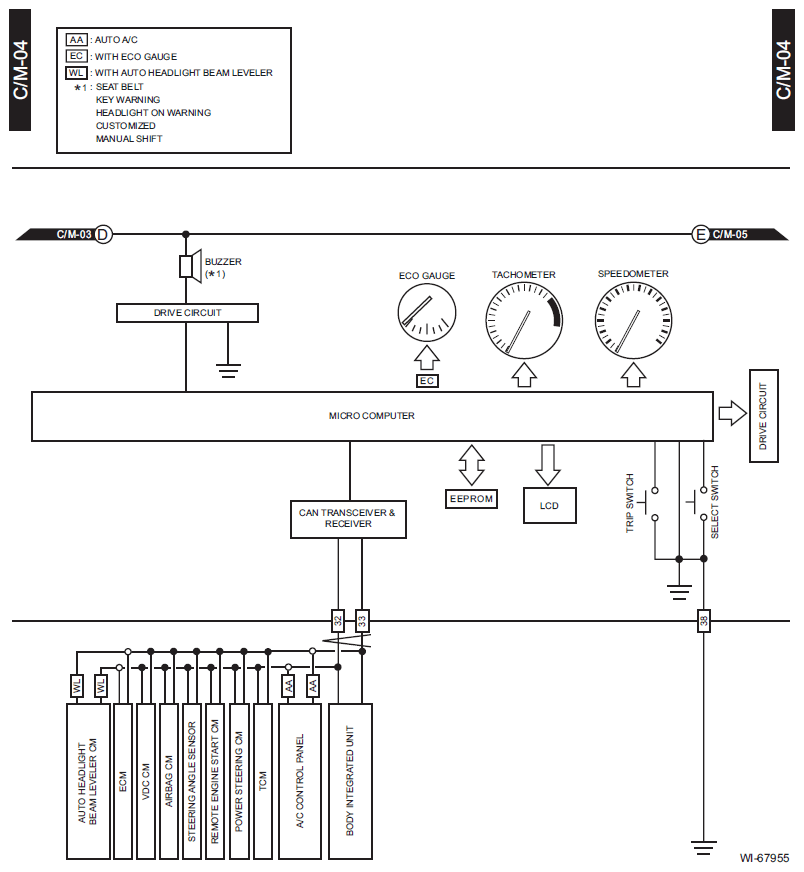

Fig 4: Combination Meter (Normal Meter) System - Wiring Diagram (4 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

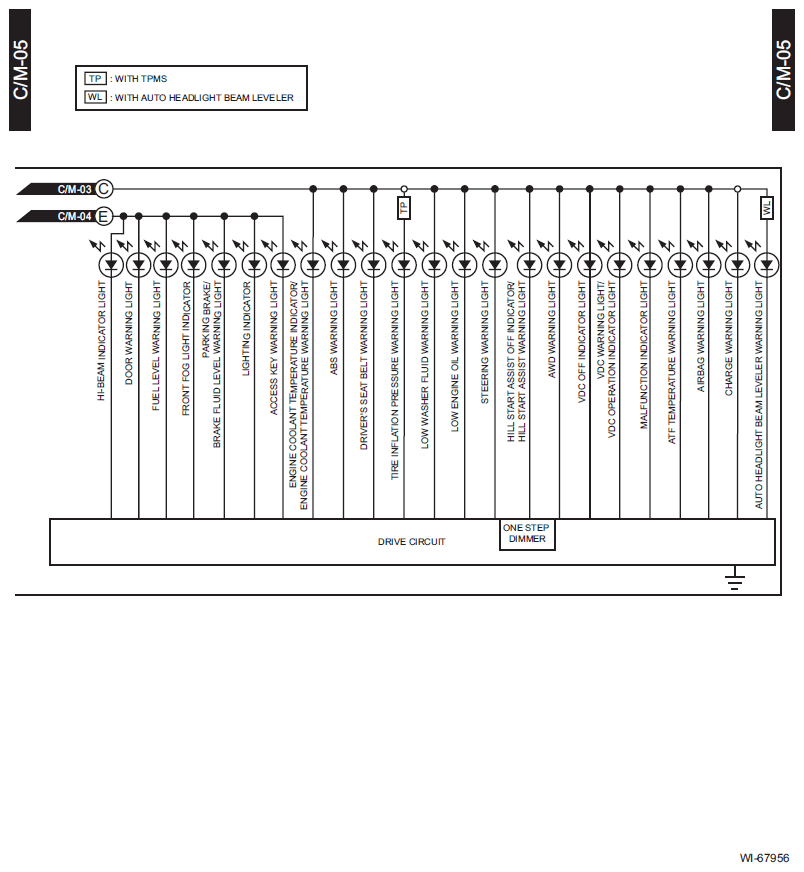

Fig 5: Combination Meter (Normal Meter) System - Wiring Diagram (5 Of 5)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
