Fuel Gauge System: Wiring Diagram

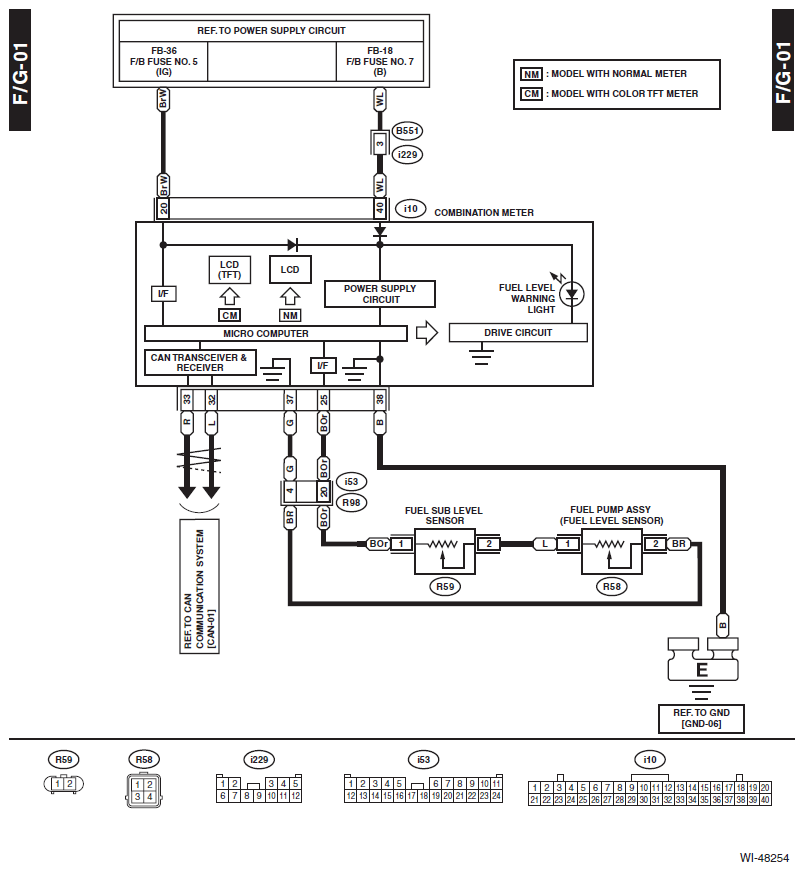

Fig 1: Fuel Gauge System - Wiring Diagram

G11573479

Courtesy of SUBARU OF AMERICA, INC.
