Example Of DTC Data Not Received

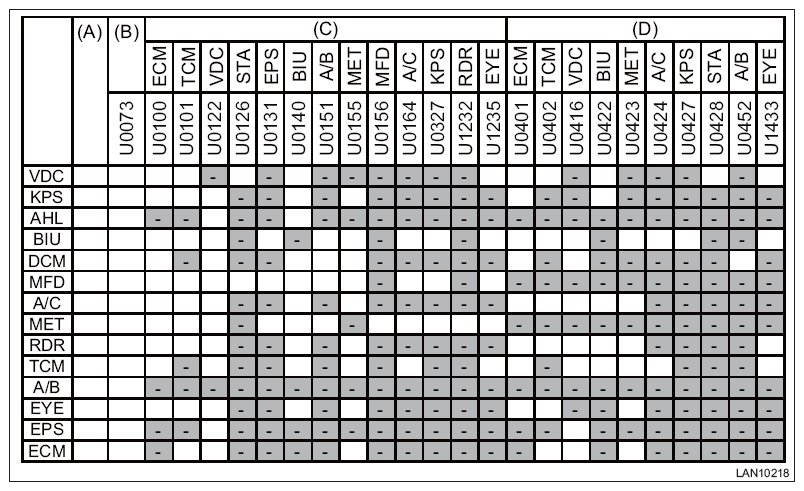

Fig 1: DTC Data Not Received

Courtesy of SUBARU OF AMERICA, INC.

When (18) (remote engine start Control Module vicinity) is open

NOTE: No DTC remains, and the remote engine starter does not function.

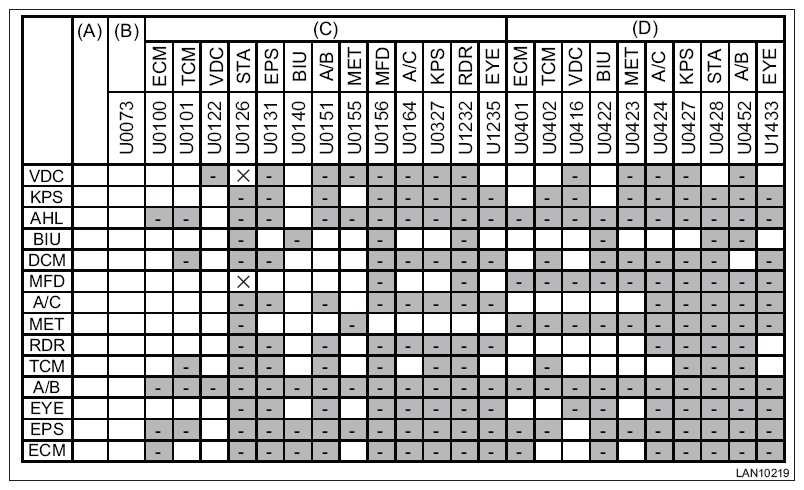

Fig 2: DTC Data Not Received - When (18) (Remote Engine Start Control Module Vicinity) Is Open

Courtesy of SUBARU OF AMERICA, INC.

When (19) (steering angle sensor vicinity) is open

Fig 3: DTC Data Not Received - When (19) (Steering Angle Sensor Vicinity) Is Open

Courtesy of SUBARU OF AMERICA, INC.

When (23) (power steering Control Module vicinity) is open

NOTE: Power steering Control Module may display U1120 (Auto Start Stop COMMUNICATION LOST).

Fig 4: DTC Data Not Received - When (23) (Power Steering Control Module Vicinity) Is Open

Courtesy of SUBARU OF AMERICA, INC.
