Refrigerant Recovery Procedure: Procedure

CAUTION:

During operation, be sure to wear protective goggles and protective gloves.
Connect the refrigerant recovery system with the manifold gauge set to discharge the refrigerant from the A/C system and recycle the gas.
When recycling the discharged refrigerant, keep service cans on hand. Because the recovery rate with the recovery system is approx. 90%, service cans are necessary to charge the refrigerant.
Follow the detailed operation procedure described in the operation manual attached to the refrigerant recovery system.

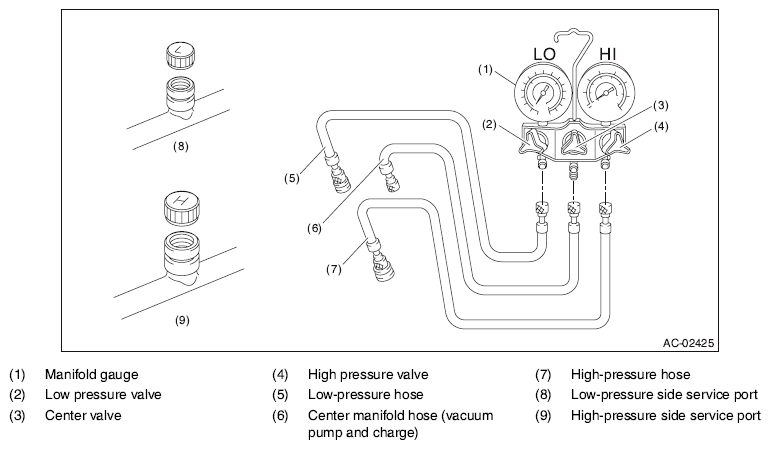

Fig 1: Connecting Refrigerant Recovery System With Manifold Gauge

Courtesy of SUBARU OF AMERICA, INC.

Perform compressor oil return operation. < Ref. to PROCEDURE , Compressor Oil. >
Turn the ignition switch to OFF.
Remove the collector cover. (Except for STI model) < Ref. to REMOVAL , Collector Cover. >
Attach the manifold gauge set.
Preparation tool:

Manifold gauge set
1. Check that all valves are fully closed.
2. Install the low/high pressure hoses to the service ports on the low/high pressure sides of the vehicle respectively.
  CAUTION: Confirm that the connections are secure.
3. Connect the center hose to the refrigerant recovery system.
  Preparation tool:

  Refrigerant recovery system
Follow the operation manual attached to the refrigerant recovery system to collect the refrigerant.
