Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts

WARNING: This page is about a different variant/trim than selected.

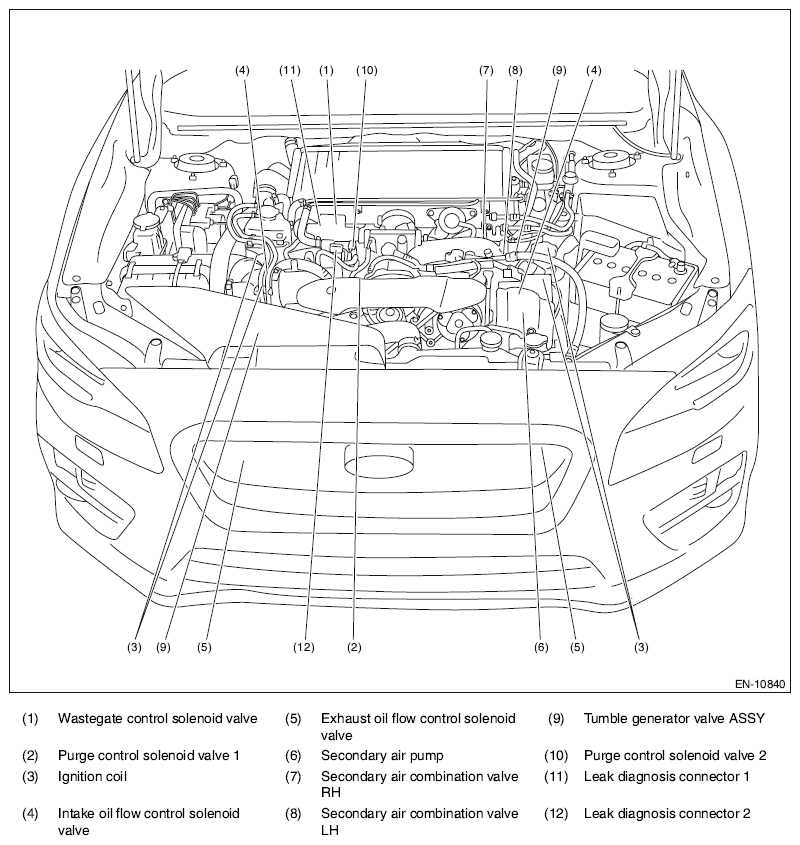

Fig 1: Identifying Solenoid Valve, Actuator, Emission Control System And Ignition System Parts (1 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

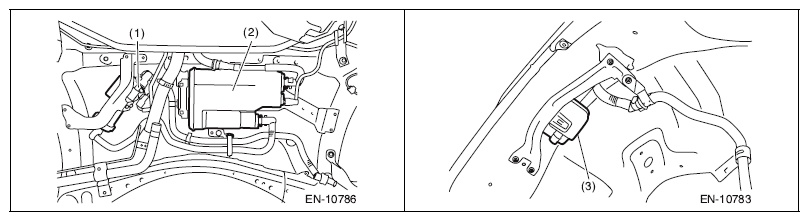

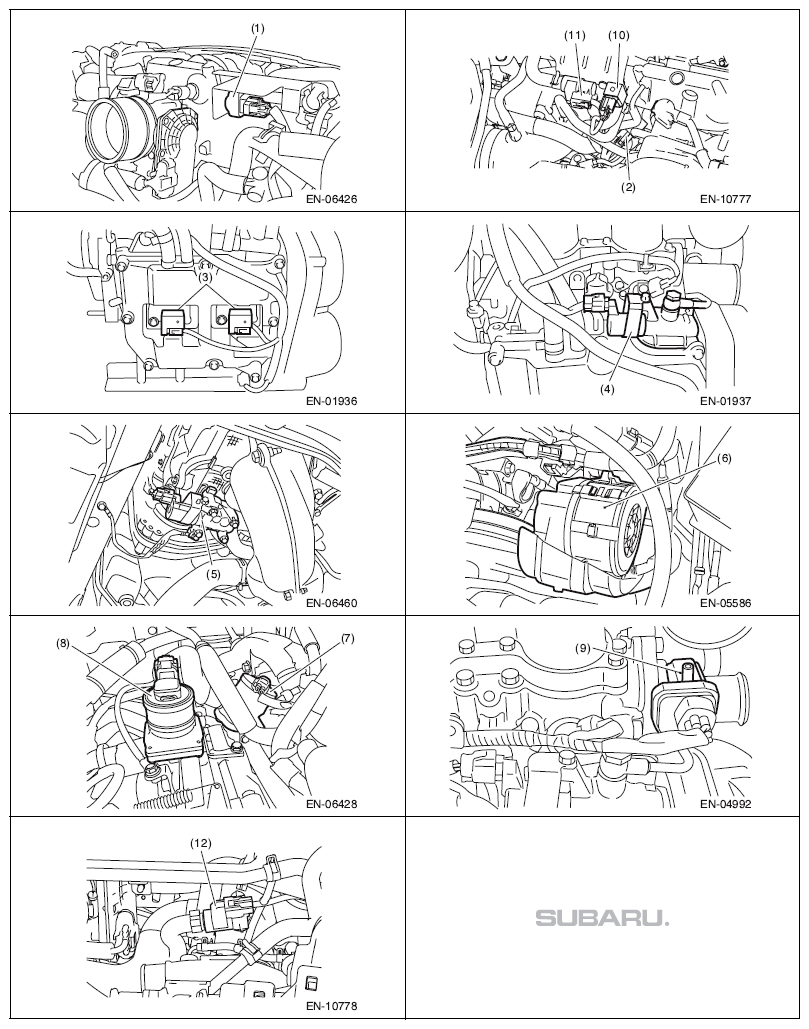

Fig 2: Identifying Solenoid Valve, Actuator, Emission Control System And Ignition System Parts (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

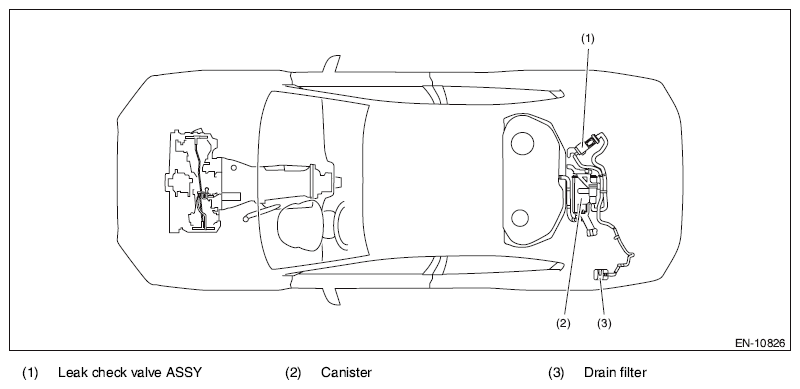

Fig 3: Identifying Solenoid Valve, Actuator, Emission Control System And Ignition System Parts (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

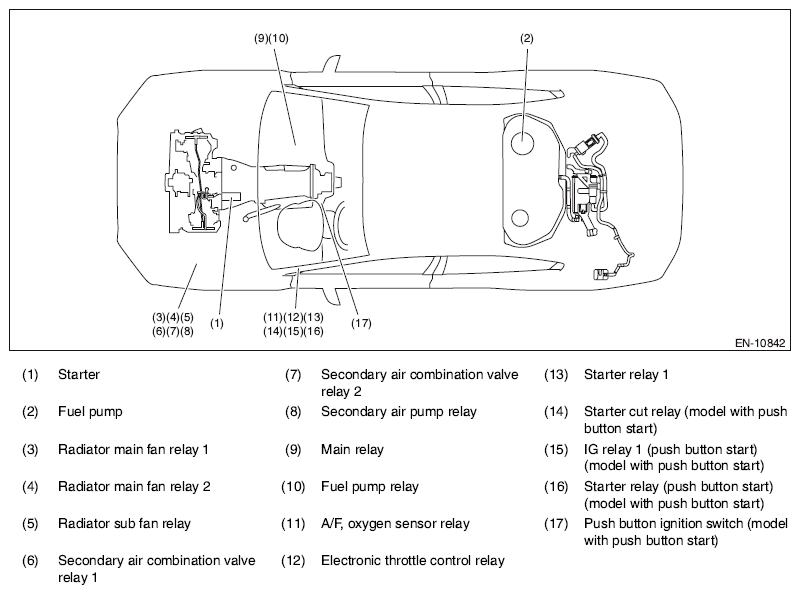

Fig 4: Identifying Solenoid Valve, Actuator, Emission Control System And Ignition System Parts (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

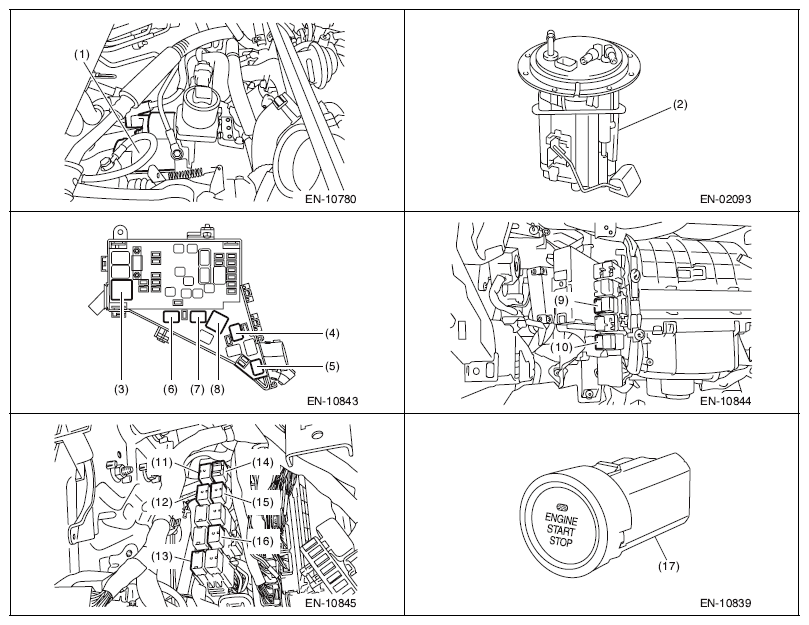

Fig 5: Identifying Solenoid Valve, Actuator, Emission Control System And Ignition System Parts (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Identifying Solenoid Valve, Actuator, Emission Control System And Ignition System Parts (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.
