Control Module

WARNING: This page is about a different variant/trim than selected.

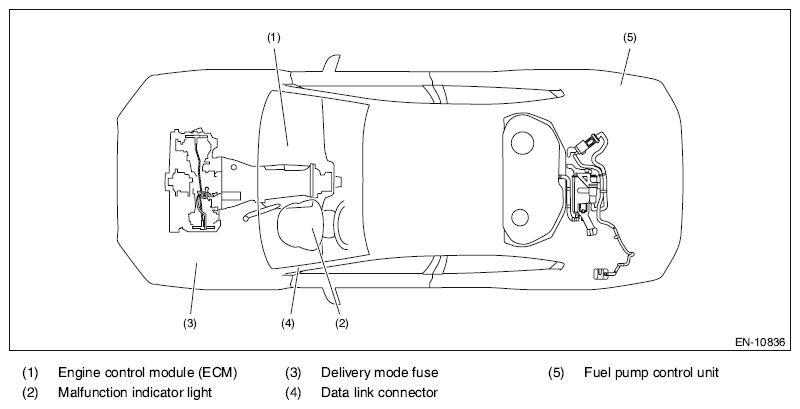

Fig 1: Engine Control Module Component Location (1 Of 2)
G10290790Courtesy of SUBARU OF AMERICA, INC.

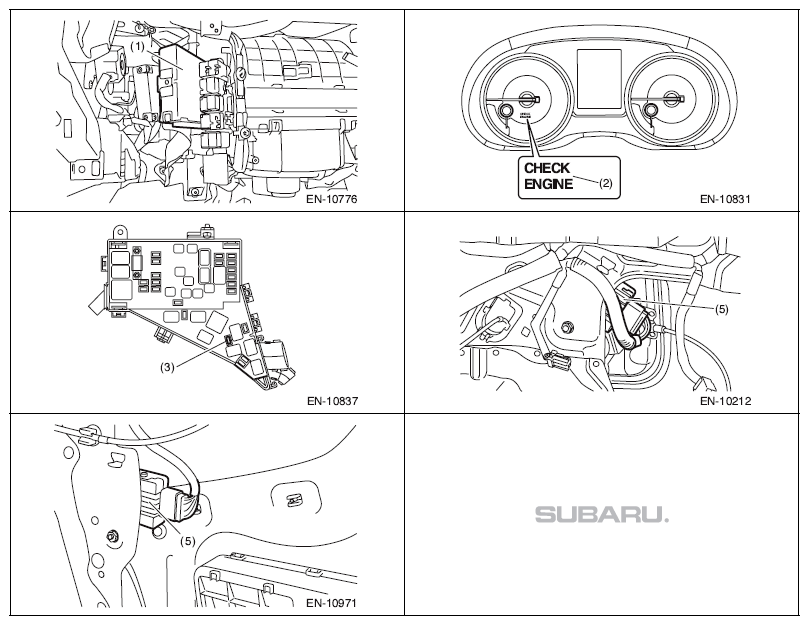

Fig 2: Engine Control Module Component Location (2 Of 2)
G10290791Courtesy of SUBARU OF AMERICA, INC.
