Section 8 (Engine Cooling System (WRX-STI)): Thermostat: Removal

WARNING: This page is about a different variant/trim than selected.

Drain engine coolant. < Ref. to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
Disconnect the radiator outlet hose from thermostat cover.

Fig 1: Locating Thermostat Cover And Radiator Outlet Hose Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the thermostat cover, and then remove the gasket and thermostat.

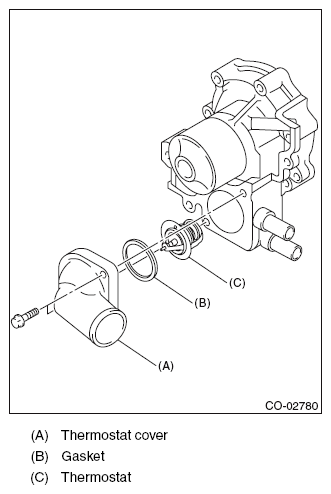

Fig 2: Identifying Thermostat, Thermostat Cover And Gasket
Courtesy of SUBARU OF AMERICA, INC.
