Transmission Gear Oil: Inspection
WARNING: This page is about a different variant/trim than selected.
- Lift up the vehicle.

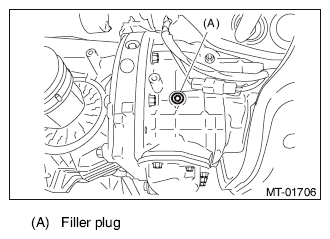

- Remove the filler plug.
- Check that the transmission gear oil level is up to the bottom of the filler plug. If the transmission gear oil level is low, confirm that there is no oil leakage and refill up to the bottom of filler plug.
- Using a new gasket, and tighten the filler plug.
Tightening torque:
50 N.m (5.1 kgf-m, 36.9 ft-lb)
