Neutral Position Switch: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly from the vehicle. < Ref. to REMOVAL , Manual Transmission Assembly. >
  2. Disconnect the connector and clip of the neutral position switch.

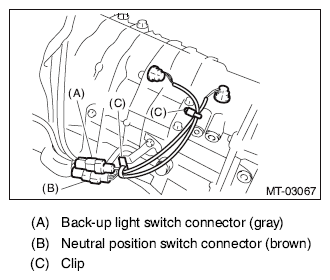

    Fig 1: Identifying Neutral Position Switch Connector And Clip
    G10294061Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the neutral position switch.
    Fig 2: Identifying Neutral Position Switch
    G10294062Courtesy of SUBARU OF AMERICA, INC.
