Neutral Position Switch: Inspection

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.
Remove the intercooler. < Ref. to REMOVAL , Intercooler. >
Disconnect the transmission harness and chassis harness.

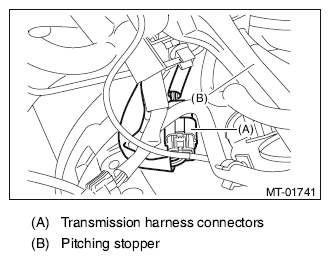

Fig 1: Identifying Transmission Harness Connectors
Courtesy of SUBARU OF AMERICA, INC.

Measure the resistance between neutral position switch terminals. If not within the standard values, replace the neutral position switch.

Gear shift position	Terminal No.	Standard
Neutral position	2 and 5	Less than 1 Ω
Other positions	2 and 5	1 MΩ or more

Fig 2: Measuring Resistance Between Neutral Position Switch Terminals

Courtesy of SUBARU OF AMERICA, INC.
