Extension Case: Installation

WARNING: This page is about a different variant/trim than selected.

Select the adjusting washer of the transfer driven gear, and attach it to the extension case. < Ref. to ADJUSTMENT , Extension Case. >
Install the taper roller bearing (extension case side) outer race to the extension case.
CAUTION: Apply transmission gear oil onto sliding or revolving surfaces before installation.
Select the adjusting washer of the transfer drive gear, and attach it to the center differential.
Apply liquid gasket to the transmission case.
Liquid gasket:

THREE BOND 1215B or equivalent

Fig 1: Identifying Liquid Gasket Applying Area To Transmission Case
Courtesy of SUBARU OF AMERICA, INC.
Install the extension case.
Tightening torque:

48 N.m (4.9 kgf-m, 35.4 ft-lb)

Fig 2: Identifying Extension Case
Courtesy of SUBARU OF AMERICA, INC.

NOTE: Insert the stopper section of the center differential between the oil guide.

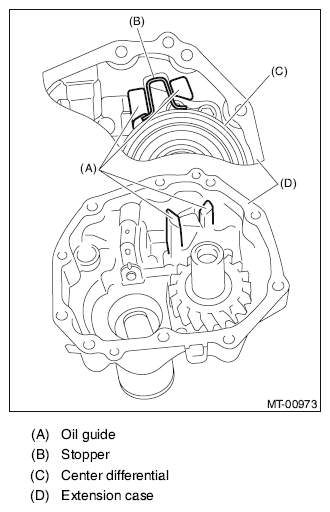

Fig 3: Inserting Stopper Section Of Center Differential Between Oil Guide
Courtesy of SUBARU OF AMERICA, INC.
Install the manual transmission assembly to the vehicle. < Ref. to INSTALLATION , Manual Transmission Assembly. >
