Back-up Light Switch: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly from the vehicle. < Ref. to REMOVAL , Manual Transmission Assembly. >
  2. Disconnect the back-up light switch connector.

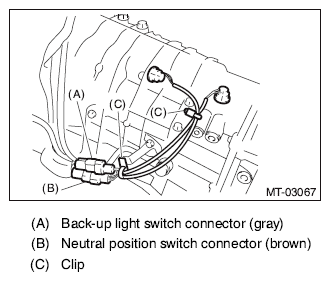

    Fig 1: Identifying Back-Up Light Switch Connector
    G10294057Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the back-up light switch.
    Fig 2: Identifying Back-Up Light Switch
    G10294058Courtesy of SUBARU OF AMERICA, INC.
