Back-up Light Switch: Inspection

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.
Remove the intercooler. < Ref. to REMOVAL , Intercooler. >
Disconnect the transmission harness and chassis harness.

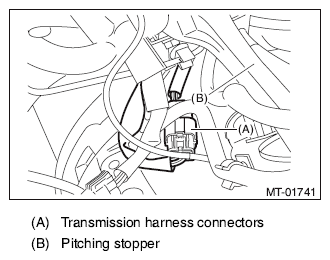

Fig 1: Identifying Transmission Harness Connectors
Courtesy of SUBARU OF AMERICA, INC.

Measure the resistance between the back-up light switch terminals. If it is not within the specification, replace the back-up light switch.

Gear shift position	Terminal No.	Standard
Back position	3 and 6	Less than 1 Ω
Other positions	3 and 6	1 MΩ or more

Fig 2: Measuring Resistance Between Back-Up Light Switch Terminals

Courtesy of SUBARU OF AMERICA, INC.
