Section 6 (Starting System & Charging System (WRX-STI)): Starter: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

NOTE: Tighten the starter and bracket (a) together using the upper bolt securing the starter.

Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

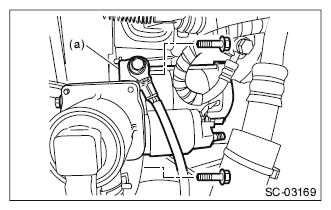

Fig 1: Identifying Starter And Bracket

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)

Fig 2: Locating Starter Bolts

Courtesy of SUBARU OF AMERICA, INC.
