Pressure Regulator & Damper Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove the fuel pipe protector from the pressure regulator and damper assembly.

Fig 1: Identifying Pressure Regulator, Damper Assembly And Fuel Pipe Protector
Courtesy of SUBARU OF AMERICA, INC.
Remove the pulsation damper and fuel pipe gasket from the fuel holder assembly, and remove the pressure regulator from the fuel holder assembly.

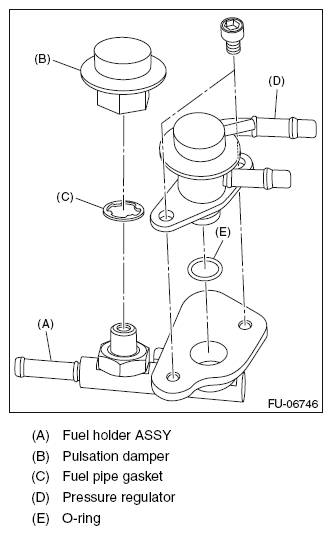

Fig 2: Identifying Fuel Holder Assembly, Pulsation Damper, Fuel Pipe Gasket, Pressure Regulator, O-Ring
Courtesy of SUBARU OF AMERICA, INC.
