Components With Torque Specifications: Turbocharger

WARNING: This page is about a different variant/trim than selected.

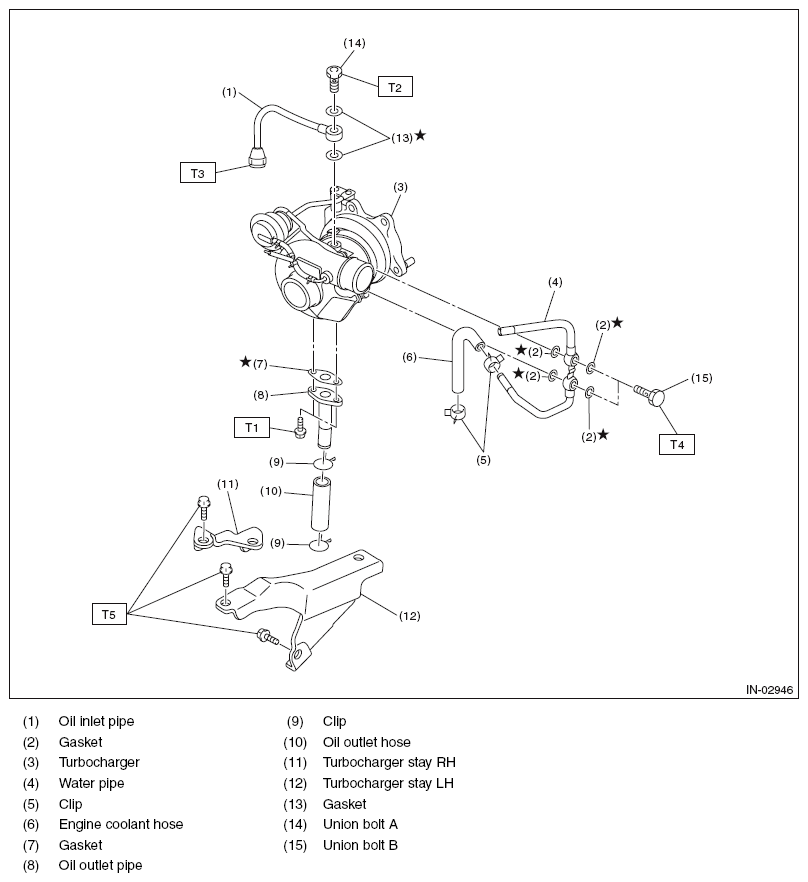

Fig 1: Exploded View Of Turbocharger With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 4.9 (0.5, 3.6)

T2: 16 (1.6, 11.8)

T3: 20 (2.0, 14.8)

T4: 23 (2.3, 17.0)

T5: 33 (3.4, 24.3)
