Chamber Assembly

WARNING: This page is about a different variant/trim than selected.

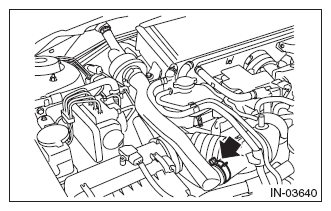

Set the chamber assembly to the vehicle, and install the bolts securing the chamber assembly to the intercooler stay RH No. 1.
Tightening torque:

6 N.m (0.6 kgf-m, 4.4 ft-lb)
Connect the hose (front) (A) to the chamber assembly.

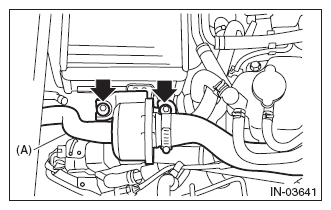

Fig 1: Locating Chamber Assembly Hose (Front)
Courtesy of SUBARU OF AMERICA, INC.
Install the clip that secures the chamber assembly.
NOTE:
- Align the concave section (a) of the air intake boot side to the positioning protrusion section (b) of the chamber duct side, and insert until the end face of chamber duct contacts the air intake boot.

  Fig 2: Aligning Concave Section Of Air Intake Boot Side
  Courtesy of SUBARU OF AMERICA, INC.
- Align the center of the clip tab to the center of the T-shaped protrusion of the chamber duct.
- Be careful so that the clip does not ride on the protrusion at the bottom of the chamber duct.

  Fig 3: Aligning Center Of Clip Tab To T-Shaped Protrusion Center
  Courtesy of SUBARU OF AMERICA, INC.

  Fig 4: Locating Chamber Assembly Clip
  Courtesy of SUBARU OF AMERICA, INC.
