Air Cleaner Element: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery.
  2. Remove the air intake duct. < Ref. to REMOVAL , Air Intake Duct. >
  3. Remove the air flow and intake air temperature sensor harness (A) from the air cleaner case (front).
  4. Remove the clips (B) from the air cleaner case (front).
  5. Remove the power steering oil pressure hose (suction hose) (C) and harness (D) from the air cleaner case (rear).

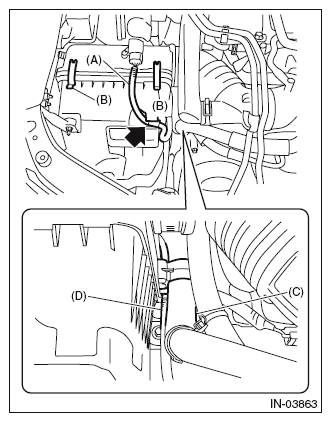

    Fig 1: Locating Intake Air Temperature Sensor Harness
    G10290146Courtesy of SUBARU OF AMERICA, INC.
  6. Open the air cleaner case, and remove the air cleaner element.
    Fig 2: Removing Air Cleaner Element
    G10265121Courtesy of SUBARU OF AMERICA, INC.
