Section 15 (Diagnostic Trouble Code (DTC) Detecting Criteria)
>>
Diagnostic Trouble Code (DTC) Detecting Criteria
>>
DTC P0014 "B" Camshaft Position - Timing Over-Advanced Or System Performance Bank 1
>>
Component Description
Component Description
WARNING:
This page is about a different variant/trim than selected.

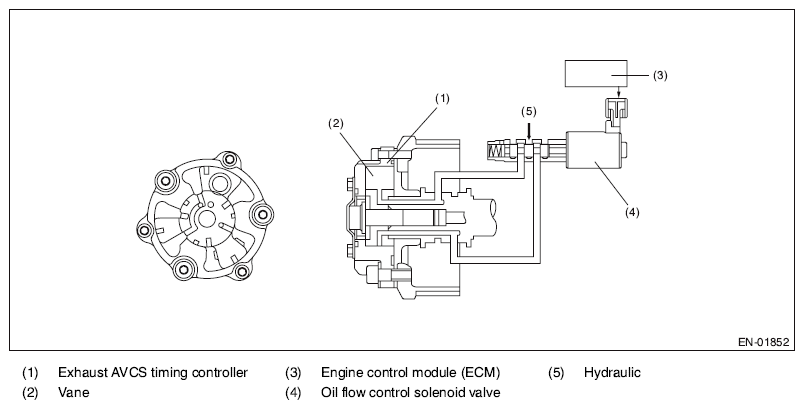

Fig 1: Identifying Exhaust AVCS Actual Timing Control Components
Courtesy of SUBARU OF AMERICA, INC.
