Secondary Air Combination Valve RH

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the intercooler. < Ref. to REMOVAL , Intercooler. >
Remove the intake manifold. < Ref. to REMOVAL , Intake Manifold. >
Disconnect the air duct A.
Disconnect the secondary air pipe RH.
Remove the secondary air combination valve RH.

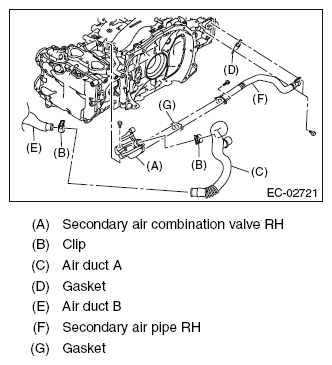

Fig 2: Identifying Secondary Air Combination Valve, Clip, Air Duct, Gasket, Secondary Air Pipe
Courtesy of SUBARU OF AMERICA, INC.
