Secondary Air Combination Valve LH

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery.
  2. Remove the intercooler. < Ref. to REMOVAL , Intercooler. >
  3. Disconnect the connector from the secondary air combination valve LH.
  4. Disconnect the air duct A.
  5. Remove the secondary air pipe LH.
  6. Remove the secondary air combination valve LH.

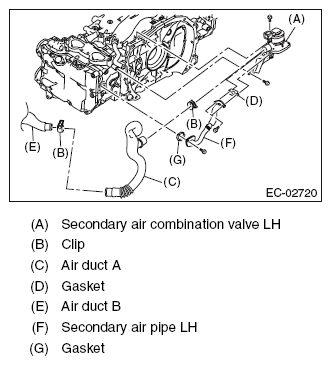

    Fig 1: Identifying Secondary Air Combination Valve, Clip, Air Duct, Gasket, Secondary Air Pipe
    G10290130Courtesy of SUBARU OF AMERICA, INC.
