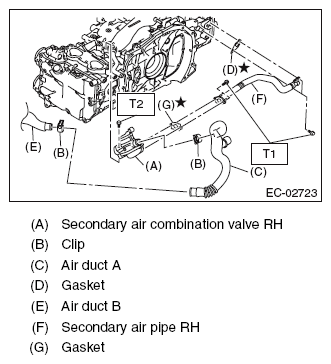

Secondary Air Combination Valve RH
WARNING: This page is about a different variant/trim than selected.
Install in the reverse order of removal.
NOTE:
Use a new gasket.
Tightening torque:
T1: 9 N.m (0.9 kgf-m, 6.6 ft-lb)
T2: 19 N.m (1.9 kgf-m, 14.0 ft-lb)
Courtesy of SUBARU OF AMERICA, INC.
