Engine Oil Cooler: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

NOTE:

Use a new gasket.
After installing, check the engine oil level and replenish it if necessary. < Ref. to INSPECTION , Engine Oil. >

Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2: 54 N.m (5.5 kgf-m, 39.8 ft-lb)

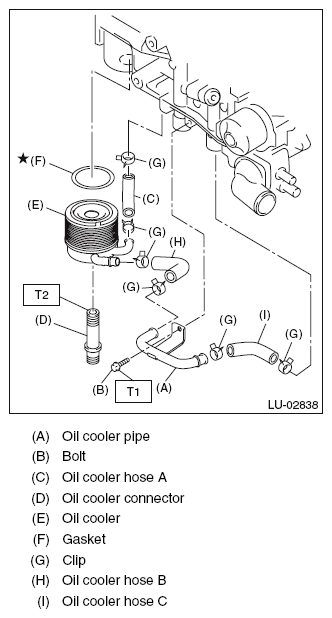

Fig 1: Identifying Engine Oil Cooler Components With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.
