Back-Up Light And Neutral Position Switch

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Note. >
  2. Remove the collector cover. < Ref. to REMOVAL , Collector Cover. >
  3. Remove the intercooler. < Ref. to REMOVAL , Intercooler. >
  4. Disconnect the connector back-up light switch & neutral position switch.

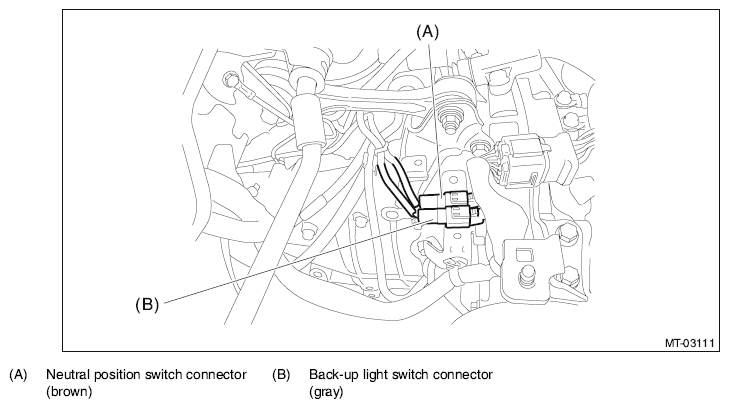

    Fig 1: Identifying Connector Back-Up Light Switch & Neutral Position Switch
    G10293723Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the harness connector from bracket.
  6. Lift up the vehicle.
  7. Remove the harness from each clip.
  8. Remove the back-up light switch & neutral position switch with the harness.

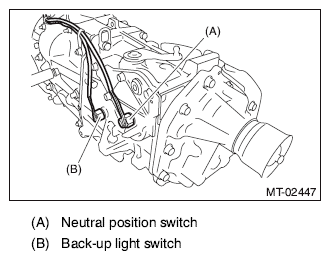

    Fig 2: Identifying Back-Up Light Switch & Neutral Position Switch
    G10293724Courtesy of SUBARU OF AMERICA, INC.
