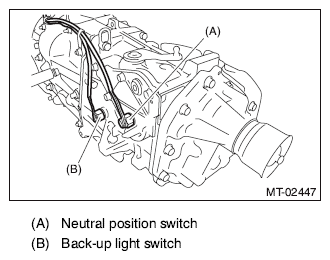

Back-Up Light And Neutral Position Switch
WARNING: This page is about a different variant/trim than selected.
- Install the back-up light switch & neutral position switch with the harness.NOTE: Use a new gasket.
Tightening torque:
32.3 N.m (3.3 kgf-m, 23.8 ft-lb)
- Secure the harness on each clip.
- Lower the vehicle.
- Install the harness connector to the bracket.
- Connect the connectors of back-up light switch & neutral position switch.
- Install the intercooler. < Ref. to INSTALLATION , Intercooler. >
- Install the collector cover. < Ref. to INSTALLATION , Collector Cover. >
- Connect the ground terminal to battery sensor. < Ref. to BATTERY , NOTE, Note. >
