Transmission Case

WARNING: This page is about a different variant/trim than selected.

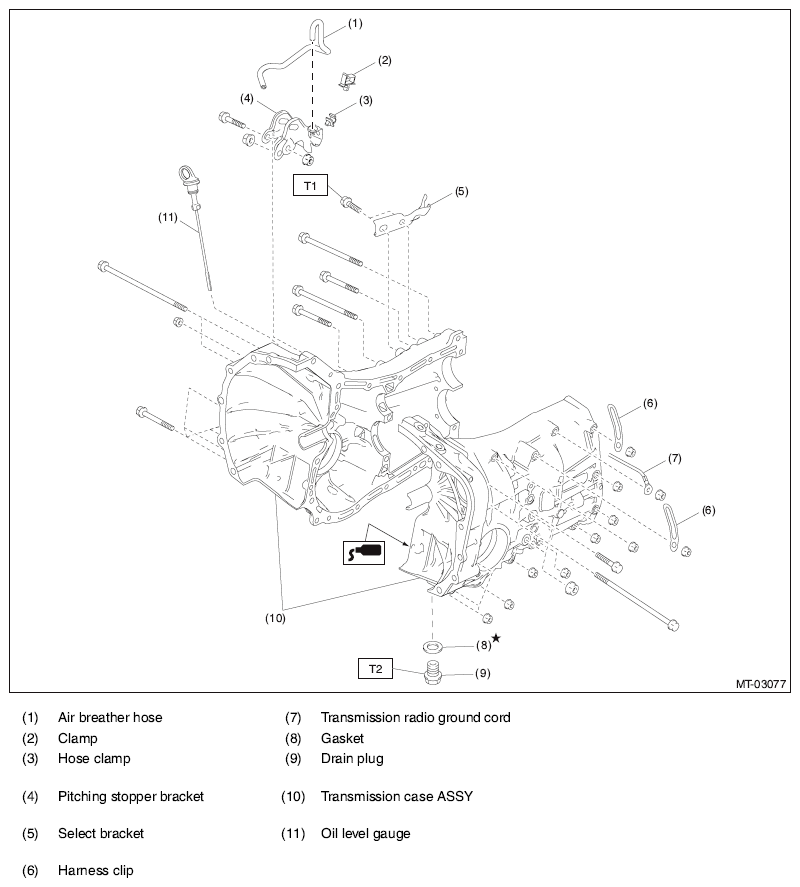

Fig 1: Exploded View Of Transmission Case

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 44 (4.5, 32.5) (aluminum gasket, silver)

70 (7.1, 51.6) (copper gasket, brown)

70 (7.1, 51.6) (metal gasket, black)

TRANSMISSION CASE TIGHTENING TORQUE SPECIFICATION

Bolt No.	Bolt size mm	Tightening torque: N. (kgf-m, ft-lb)
(5) - (15)	8	25 (2.5, 18.4)
(1) - (4) (16), (17)	10	40 (4.1, 29.5)
