Front, Rear Suspension Bushing

Apply pressure with tire lever etc, and inspect the bushing for excessive wear or damage. If defective, replace the bushing.

• Front suspension bushing
  Fig 1: Locating Front Suspension Bushings

  Courtesy of SUBARU OF AMERICA, INC.
• Rear suspension bushing

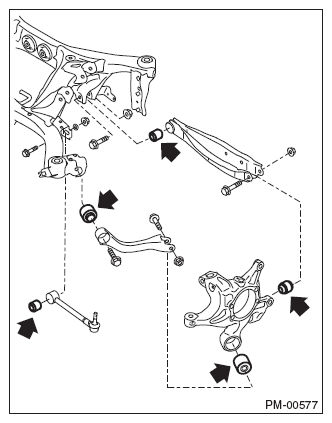

  Fig 2: Locating Rear Suspension Bushing

  Courtesy of SUBARU OF AMERICA, INC.
