Front And Rear Axle Boots

Inspect the front axle boots (A) and rear axle boots (B) for deformation, damage or failure. If faulty, replace with new part. < Ref. to FRONT DRIVE SHAFT . > < Ref. to REAR DRIVE SHAFT . >

• Front

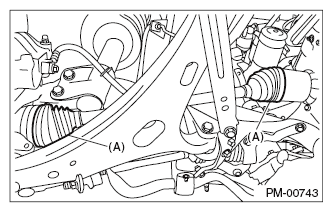

  Fig 1: Identifying Front Axle Boots

  Courtesy of SUBARU OF AMERICA, INC.
• Rear

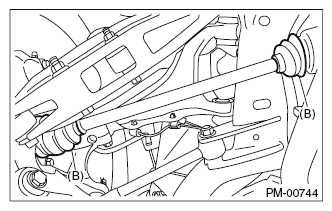

  Fig 2: Identifying Rear Axle Boots

  Courtesy of SUBARU OF AMERICA, INC.
