Rear Brake Pad: Inspection

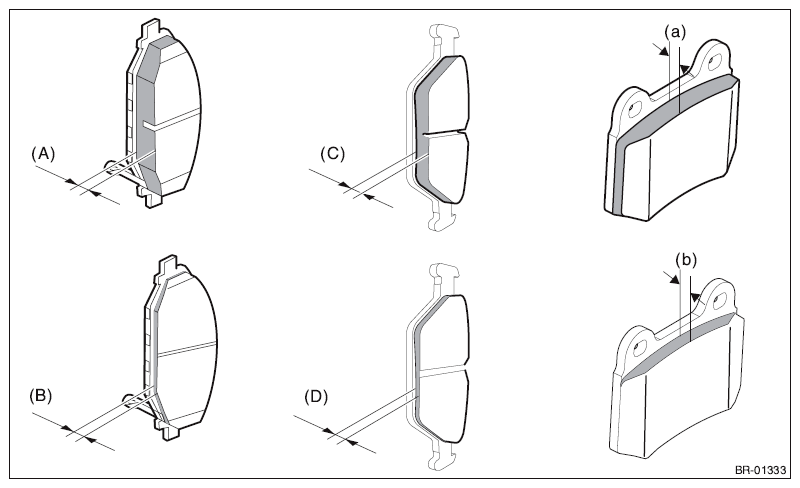

- Check the thickness of the pad - disc brake rear.
NOTE:
- Always replace the pads of both wheels and both sides as a set.
- Replace pad clips if they are twisted or worn.
- Replace the pad if there is oil or grease on it.
- Wear indicators are installed on the pad - disc brake rear inner, and a squeaking sound is heard if the pad is worn to the limit.
Courtesy of SUBARU OF AMERICA, INC.
- Except for STI model (drum in disc type)
| Standard (A) |
Wear limit (B) |
| Pad thickness |
9.0 mm (0.354 in) |
1.5 mm (0.059 in) |
- Except for STI model (electronic parking brake type)
| Standard (A) |
Wear limit (B) |
| Pad thickness |
9.0 mm (0.354 in) |
1.5 mm (0.059 in) |
- STI model
| Standard (a) |
Wear limit (b) |
| Pad thickness |
9.0 mm (0.354 in) |
1.2 mm (0.047 in) |
- If the wear limit is exceeded in the inspection, replace the brake pad.
