Front Brake Pad: Inspection

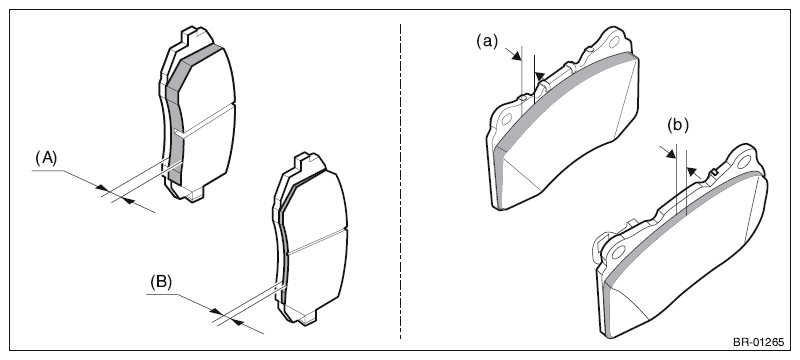

- Check the thickness (A) of the pad - disc brake front.
NOTE:
- Always replace the pads of both wheels and both sides as a set.
- Replace pad clips if they are twisted or worn.
- Replace the pad if there is oil or grease on it.
- Wear indicators are installed on the pad - disc brake front inner and the pad - disc brake front outer, and a squeaking sound is heard if the pad is worn to the limit.
Courtesy of SUBARU OF AMERICA, INC.
- Except for STI model
| Standard (A) |
Wear limit (B) |
| Pad thickness |
11 mm (0.43 in) |
1.5 mm (0.059 in) |
- STI model
| Standard (a) |
Wear limit (b) |
| Pad thickness |
8.9 mm (0.35 in) |
1.2 mm (0.047 in) |
- If the wear limit is exceeded in the inspection, replace the pad - disc brake front.
