Intake Duct No. 1

Install the vacuum hose and wastegate control solenoid valve to the intake duct No. 1.

NOTE:

Use new O-rings.
When tightening the boost control solenoid valve, check that it is securely seated.

Tightening torque:

2.8 N.m (0.3 kgf-m, 2.1 ft-lb)

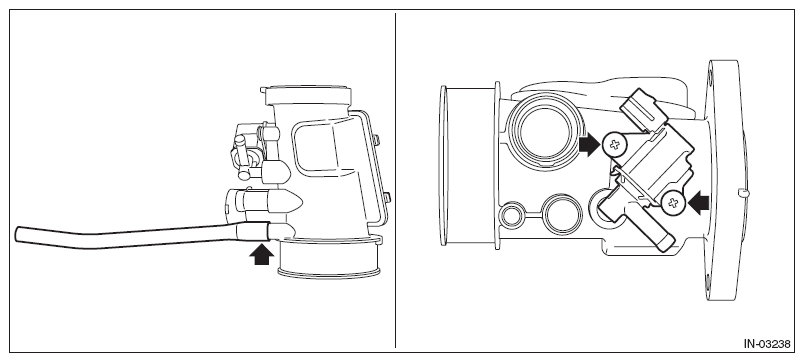

Fig 1: Locating Vacuum Hose

Courtesy of SUBARU OF AMERICA, INC.
