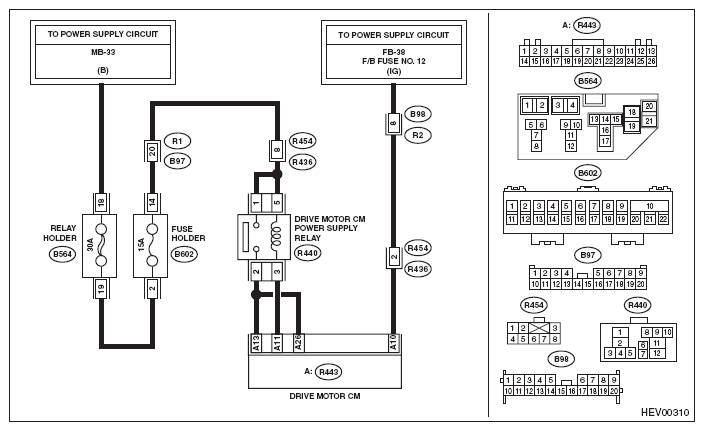

Drive Motor Control System: Wiring Diagram
WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek. However, it is still accessible from the selected car via links, so may be relevant.
Hybrid system < Ref. to WIRING DIAGRAM , Hybrid Electric Vehicle System.>
| Step | Check | Yes | No |
|---|---|---|---|
| 1 CHECK FUSE. Check DMCM fuse. < Ref. to RELAY AND FUSE .> |
Is the condition normal? | Go to step 2 . | Replace the fuse. When the replaced fuse is blown immediately, repair ground short circuit of harness between 12 volt auxiliary battery and HPCM. |
2 CHECK HARNESS.
|
Is the voltage 10 - 13 V? | Go to step 3 . | Repair the open circuit of the harness between the DMCM connector and the fuse. |
| 3 CHECK OTHER COMMUNICATION. Communicate with the system other than the drive motor control system using the Subaru Select Monitor. |
Is the communication to other control module possible? | Go to step 4 . | Perform the "COMMUNICATION FOR INITIALIZING IMPOSSIBLE " of LAN system. < Ref. to COMMUNICATION FOR INITIALIZING IMPOSSIBLE , Subaru Select Monitor.> |
| 4 CHECK LAN SYSTEM. Inspect LAN system. < Ref. to PROCEDURE , Basic Diagnostic Procedure.> |
Is there any fault? | Perform the inspection according to the diagnosis for LAN system. | Go to step 5 . |
5 CHECK DMCM.
|
Is communication possible? | It is possible that temporary poor communication occurs. | Replace DMCM. < Ref. to appropriate DRIVE MOTOR CONTROL MODULE in Continuously Variable Transmission TH58A article.> |
