DTC P065A: Generator System Performance: Wiring Diagram

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek. However, it is still accessible from the selected car via links, so may be relevant.

Hybrid system < Ref. to WIRING DIAGRAM , Hybrid Electric Vehicle System.>

Power Supply Circuit < Ref. to WIRING DIAGRAM , Power Supply Circuit.>

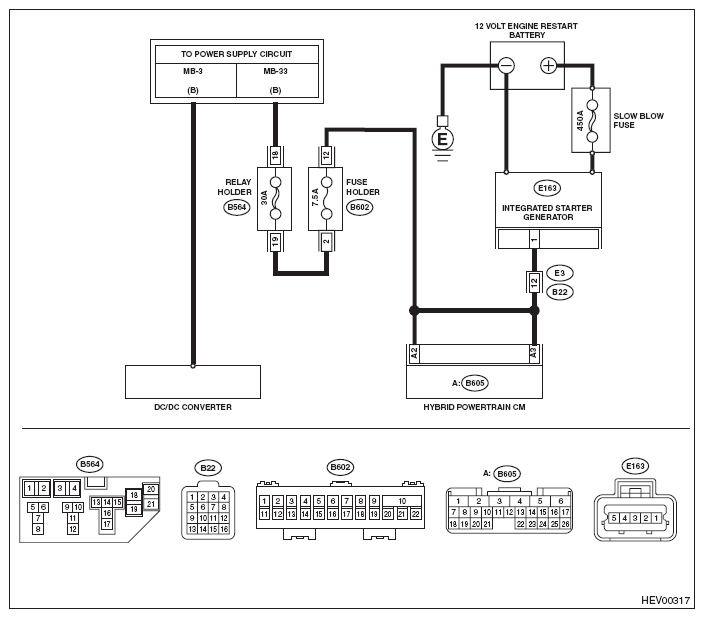

Fig 1: Generator System - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

DTC PROCEDURE

Step	Check	Yes	No
1 CHECK FUSE. Check the slow blow fuse of the 12 volt auxiliary battery.	Is the condition normal?	Go to step 2 .	Replace the fuse. When the replaced fuse blows out easily, repair short circuit to ground in harness between DC/DC converter and the battery.
2 CHECK DC/DC CONVERTER FASTENING AREA. Disconnect the ground cable of the 12 volt auxiliary battery, and as for the 12 volt engine restart battery, disconnect the ground cable from the 12V engine restart battery sensor. < Ref. to BATTERY , NOTE, Note.> Disconnect the positive cable from the 12 volt auxiliary battery. Remove the service disconnect plug. < Ref. to SERVICE PLUG .> Wait for 10 minutes. Check the fastening areas of the DC/DC converter 12 volt cable.	Is the condition normal? (Check for loose bolts, insecure connection, foreign matter caught, trace of arc (burnt terminals) etc.)	Go to step 3 .	Retighten the bolts.
3 CHECK HARNESS (OPEN CIRCUIT). Disconnect the 12 volt cable of the DC/DC converter. Using a tester, measure the resistance between the positive terminal of the 12 volt auxiliary battery and the fastening area of the DC/DC converter power cable. Connector & terminal 12 volt auxiliary battery - DC/DC converter:	Is the resistance less than 1 Ω?	Go to step 4 .	Repair the open circuit of the power cable between the DC/DC converter and the positive terminal of the 12 volt auxiliary battery.
4 CHECK BATTERY. Check the 12 volt auxiliary battery. < Ref. to BATTERY .> NOTE: Check for conditions such as loose terminals.	Is the condition normal?	Go to step 5 .	Charge or replace the battery.
5 CHECK DCDC. Using the Subaru Select Monitor, perform «DCDC Converter Output Voltage Control» of System Operation Check Mode for the hybrid powertrain control system. < Ref. to HYBRID POWERTRAIN CONTROL SYSTEM , OPERATION, System Operation Check Mode.>	Is the condition normal?	Go to step 6 .	Perform the diagnosis of DTC P0A94. < Ref. to DTC P0A94 DC/DC CONVERTER PERFORMANCE , Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
6 CHECK FUSE. Check the fuse. < Ref. to RELAY AND FUSE .>	Is the condition normal?	Go to step 7 .	Replace the fuse. If the fuse blows out easily, repair the short circuit of harness.
7 CHECK BELTS. Check the belt. < Ref. to V-BELT .>	Is the condition normal?	Go to step 8 .	Adjust or replace the belt.
8 CHECK CURRENT DATA. Using the Subaru Select Monitor, confirm the current data of hybrid powertrain control system, the value of «ISG Control Mode Actual»«12V Engine Restart Battery Voltage »«ISG Terminal Voltage». < Ref. to HYBRID POWERTRAIN CONTROL SYSTEM , OPERATION, Read Current Data.>	Is «12V Engine Restart Battery Voltage»«ISG Terminal Voltage » 12 - 15 V when the engine speed is at 2000 rpm or more and «ISG Control Mode Actual» is generating power?	Even if DTC is detected, the circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again. NOTE: In this case, temporary poor contact of connector, temporary open or short circuit of harness may be the cause.	Go to step 9 .
9 CHECK CURRENT DATA. Using the Subaru Select Monitor, confirm the current data of hybrid powertrain control system, the value of «HPCM Check 40». < Ref. to HYBRID POWERTRAIN CONTROL SYSTEM , OPERATION, Read Current Data.>	Is the value 30 m Ω or more?	Check for poor contact of 12 volt engine restart battery terminals. < Ref. to BATTERY , NOTE, Note.>	Go to step 10 .
10 CHECK HARNESS (OPEN CIRCUIT). Turn the ignition switch to OFF. Disconnect the HPCM connector. Disconnect the integrated starter generator connector. Using a tester, measure the resistance between the HPCM connector and integrated starter generator connector. Connector & terminal (B605) No. 2 - (E163) No. 1: (B605) No. 3 - (E163) No. 1:	Is the resistance less than 1 Ω?	Go to step 1 .	Repair the open circuit of the harness between the HPCM connector and the integrated starter generator terminal.
11 CHECK BATTERY. Check the 12 volt engine restart battery. < Ref. to BATTERY .>	Is the condition normal?	Replace the integrated starter generator. < Ref. to INTEGRATED STARTER GENERATOR (ISG) .>	Charge or replace the 12 volt engine restart battery.
