Air Intake Duct: Removal
WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the ignition switch to OFF.

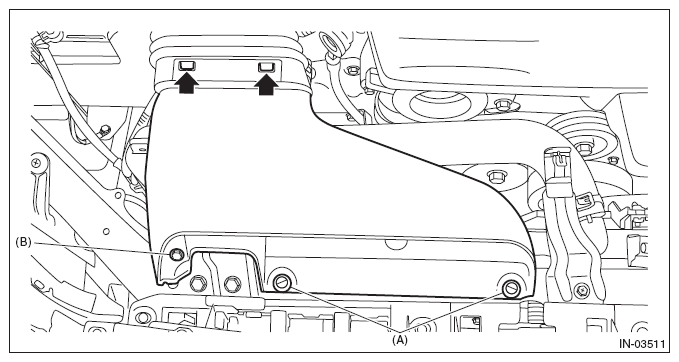

- Remove the clip (A) and the bolt (B) which hold the air intake duct.
- Remove the protrusion on the air intake duct from the air intake boot No. 1, and remove the air intake duct.
Courtesy of SUBARU OF AMERICA, INC.
