Vehicle Dynamics Control System: Wiring Diagram

Fig 1: Vehicle Dynamics Control System Wiring Diagram (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

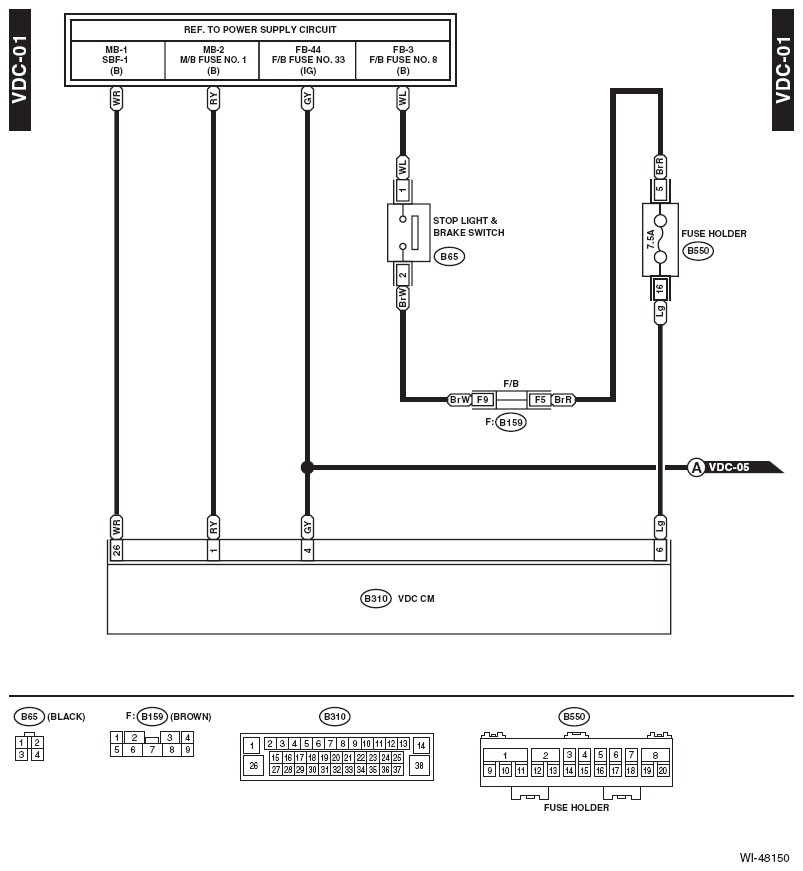

Fig 2: Vehicle Dynamics Control System Wiring Diagram (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

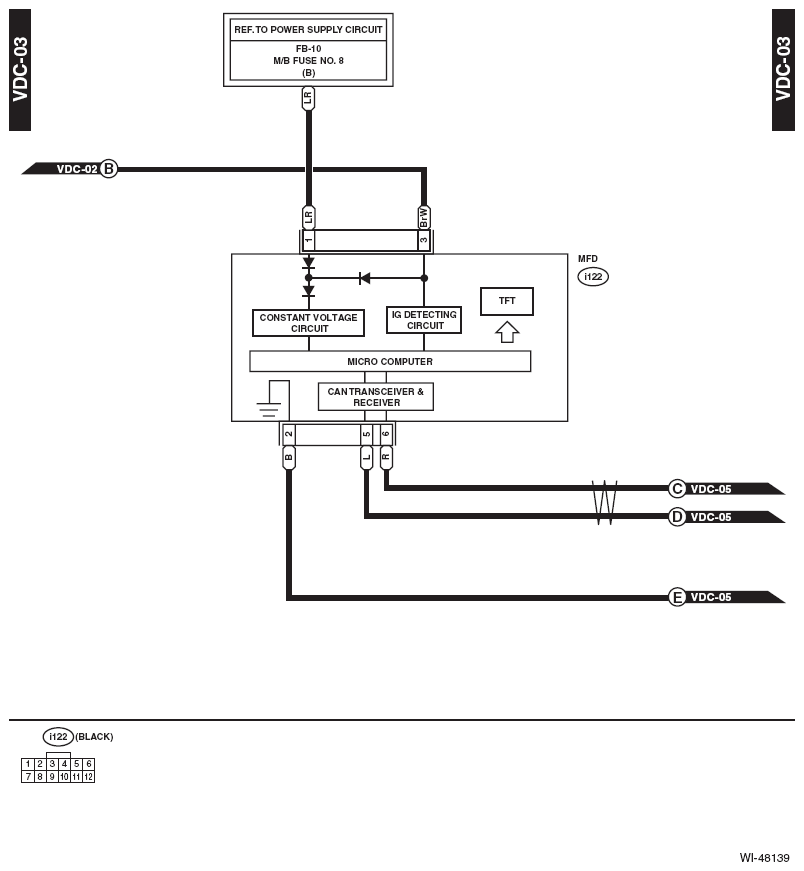

Fig 3: Vehicle Dynamics Control System Wiring Diagram (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

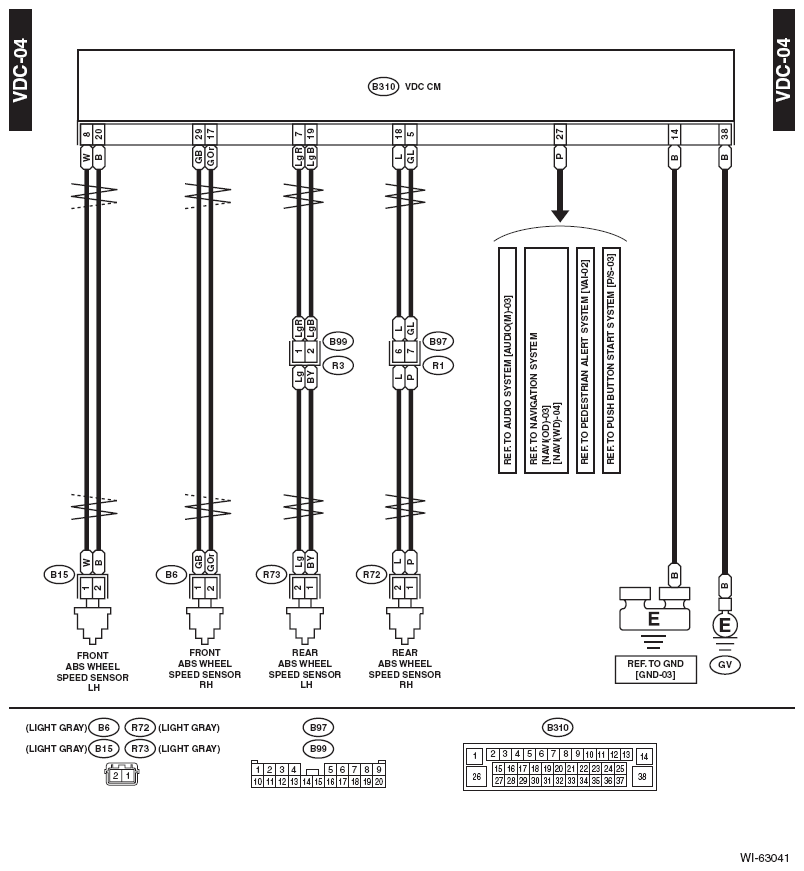

Fig 4: Vehicle Dynamics Control System Wiring Diagram (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Vehicle Dynamics Control System Wiring Diagram (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
