Tire Pressure Monitoring System: Wiring Diagram

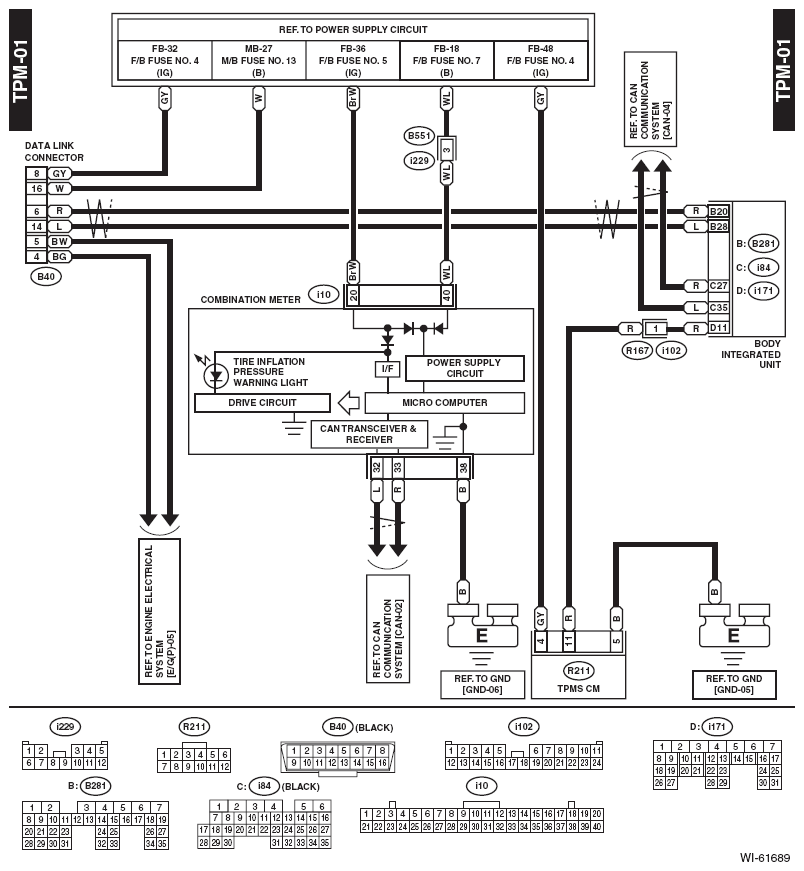

Fig 1: Tire Pressure Monitoring System Wiring Diagram

G11909368

Courtesy of SUBARU OF AMERICA, INC.
