Shift Lock Control System: Wiring Diagram

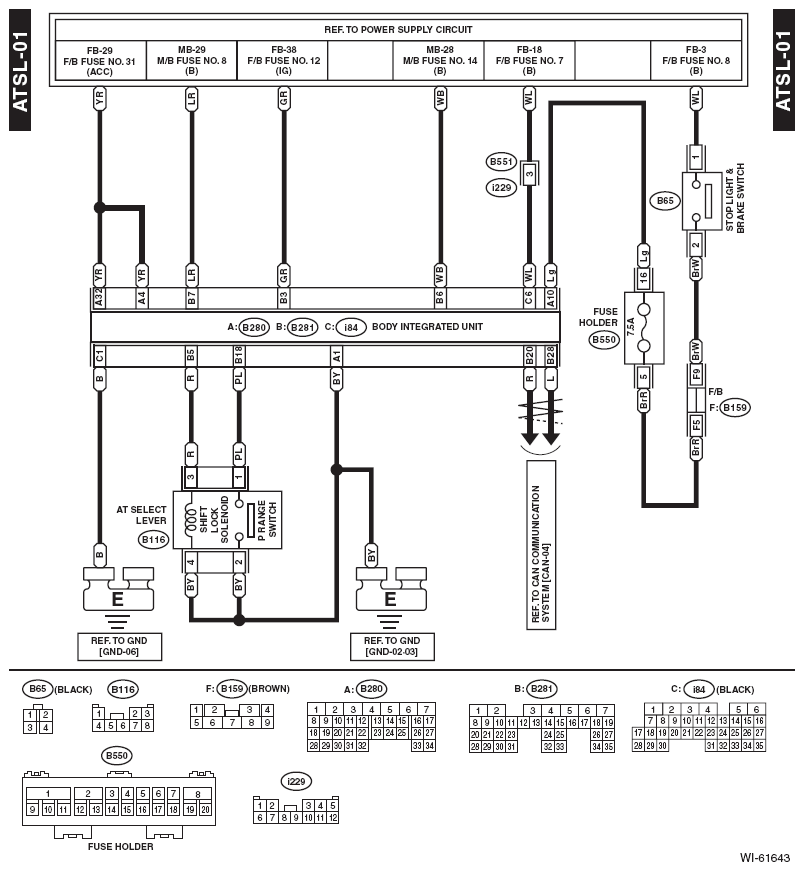

Fig 1: Shift Lock Control System Wiring Diagram

G11909359

Courtesy of SUBARU OF AMERICA, INC.
