Crosstrek Limited
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations (Except Hybrid)
>>
Security System
>>
Wiring Diagram
Security System: Wiring Diagram

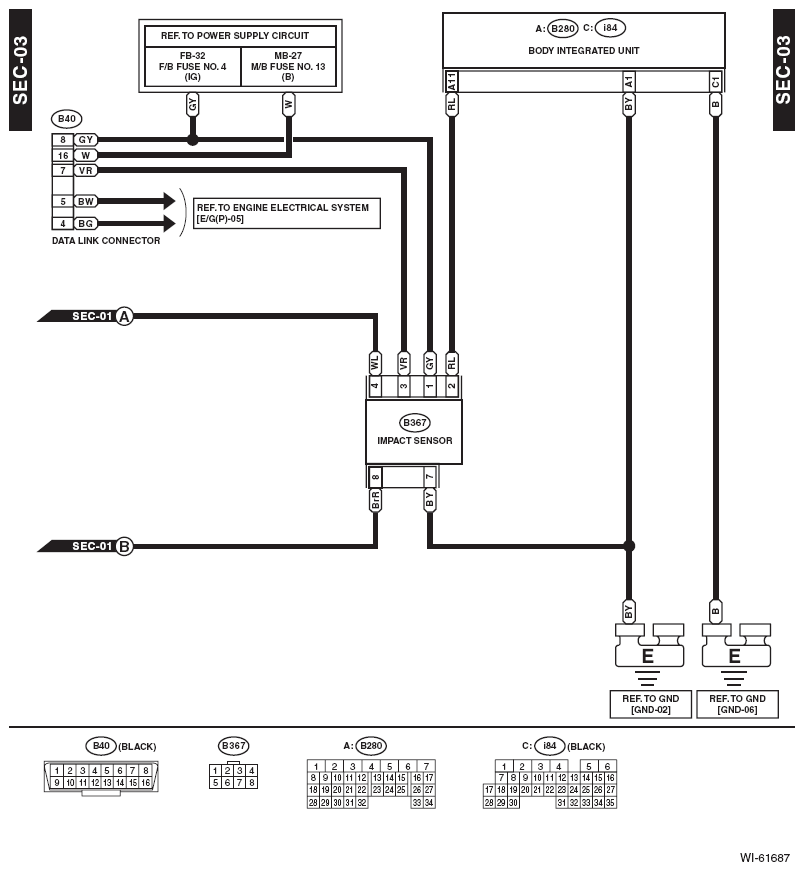

Fig 1: Security System Wiring Diagram (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

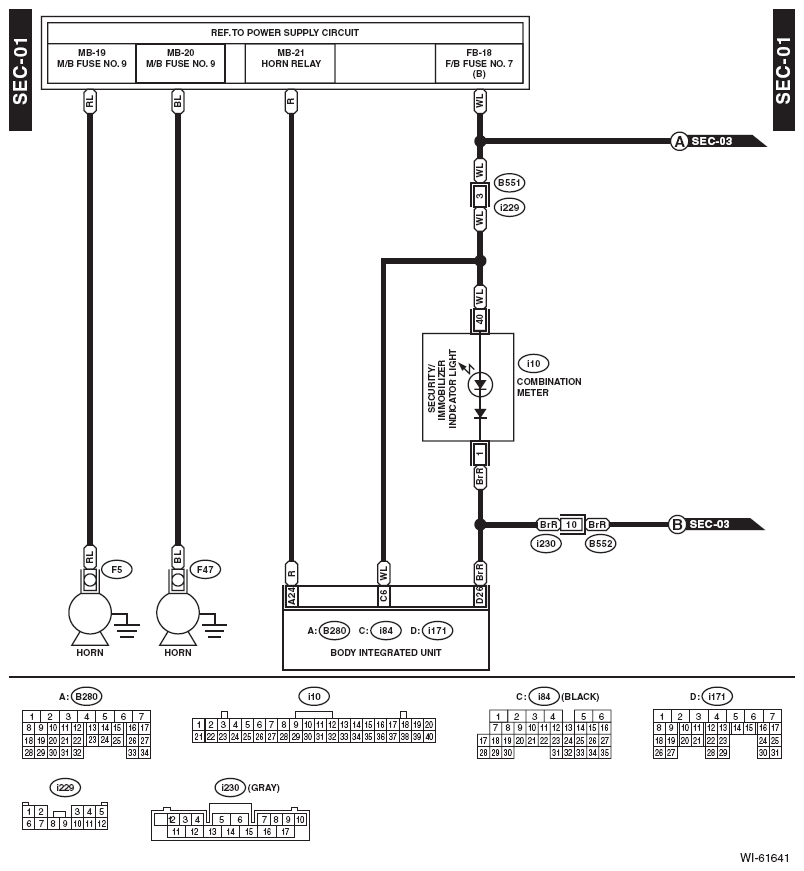

Fig 2: Security System Wiring Diagram (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

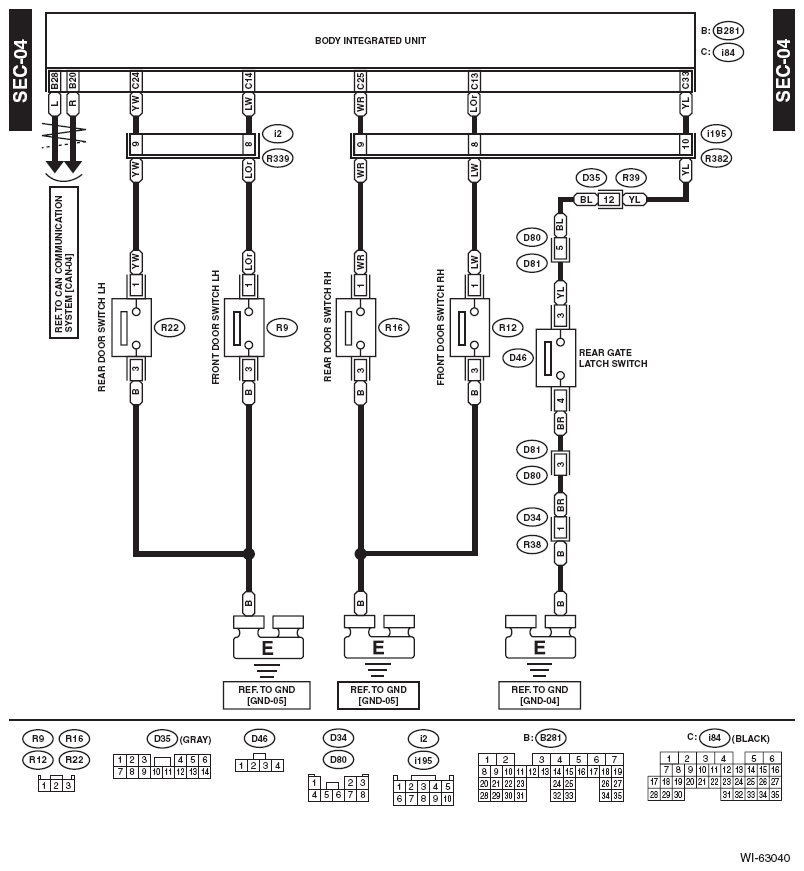

Fig 3: Security System Wiring Diagram (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

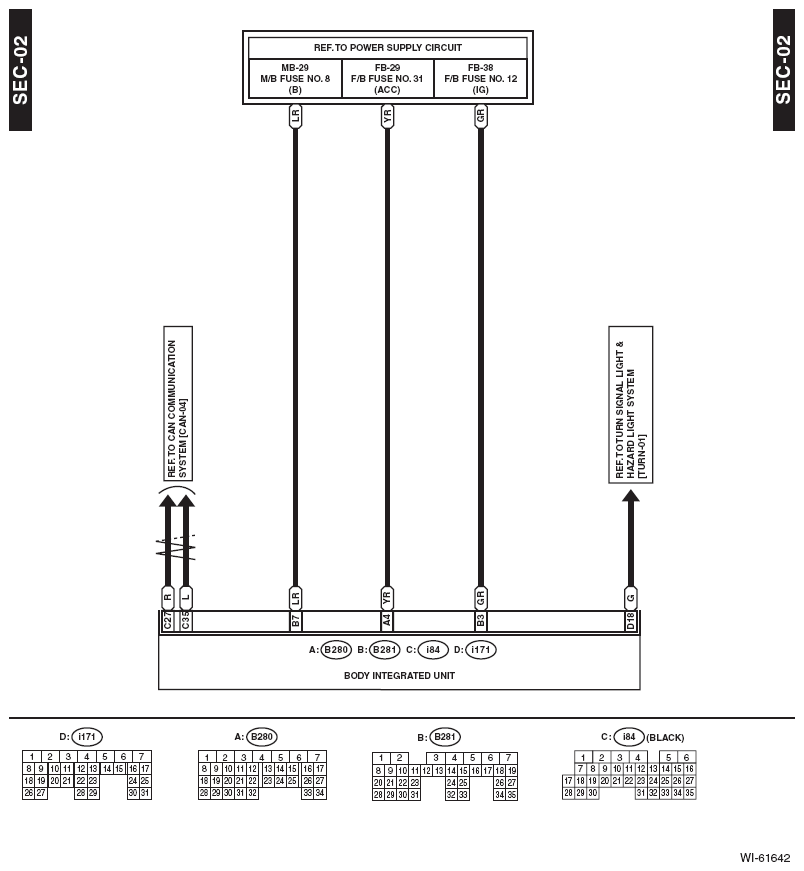

Fig 4: Security System Wiring Diagram (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
