Seat Belt Warning System: Wiring Diagram

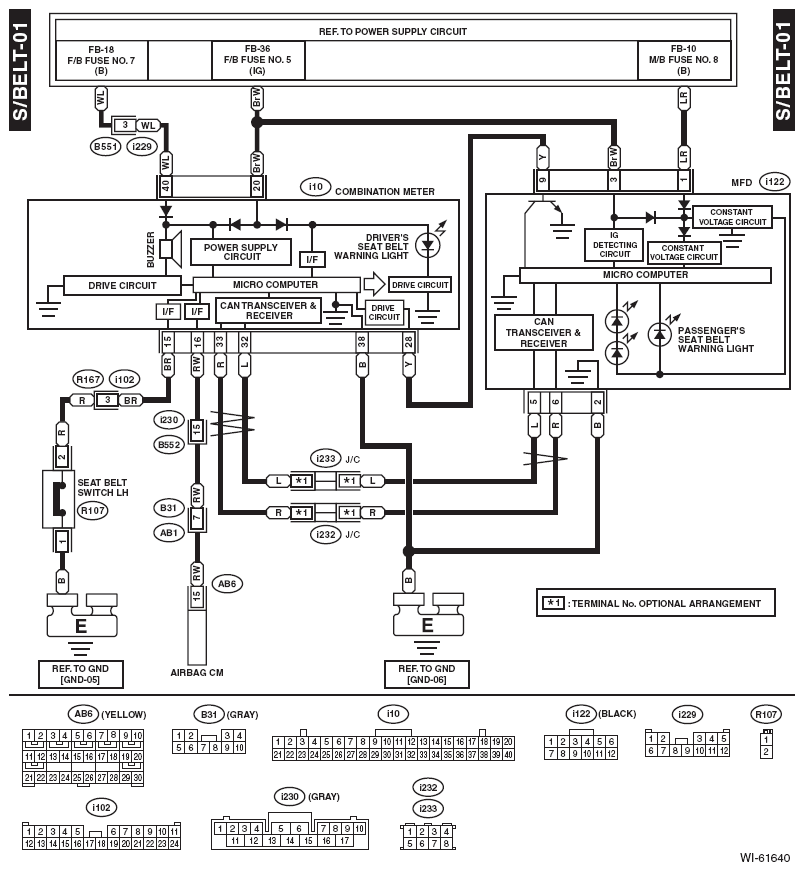

Fig 1: Seat Belt Warning System Wiring Diagram

G11909353

Courtesy of SUBARU OF AMERICA, INC.
